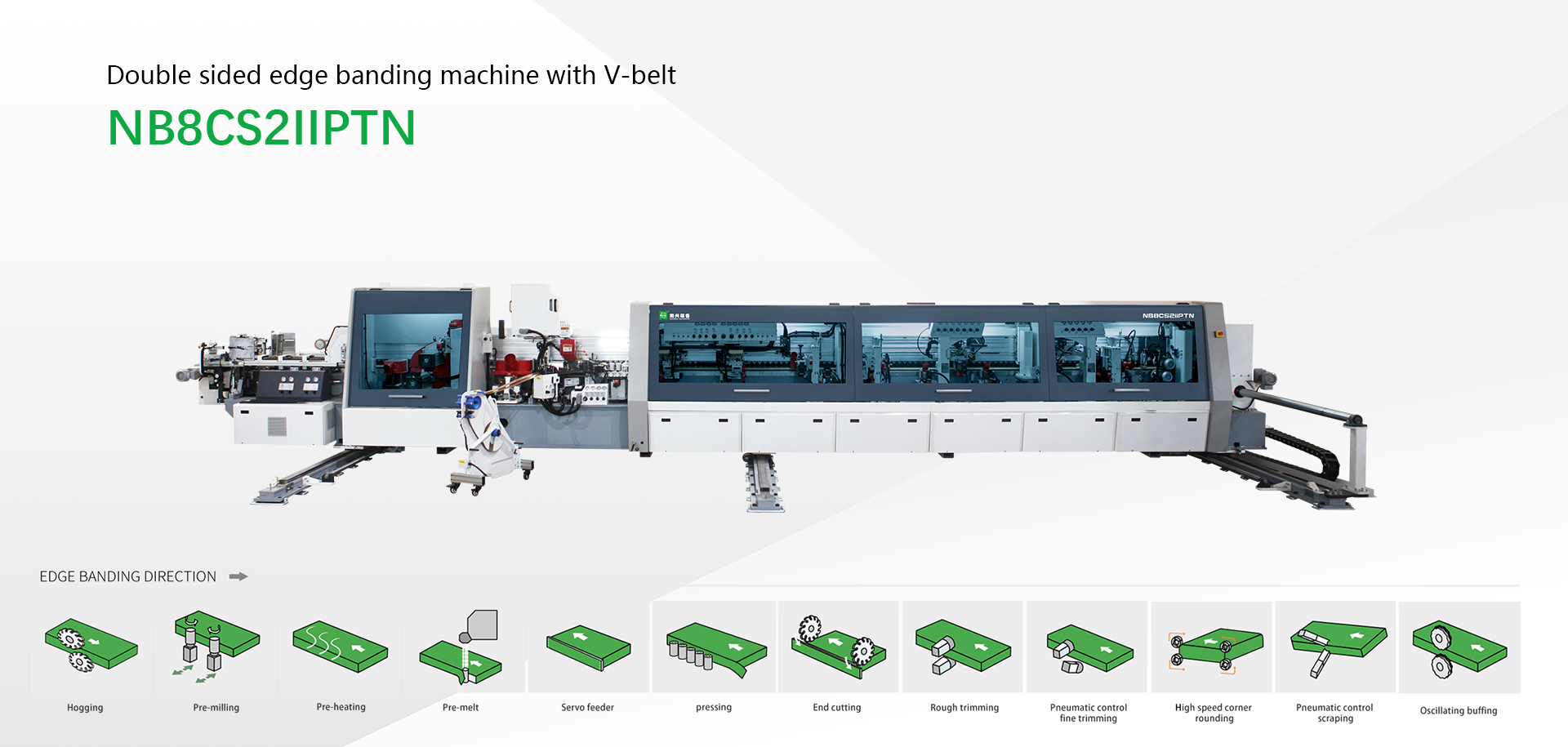

Double Sided Edge Banding Machine with V-belt NB8CS2IIPTN

Highlights

  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;

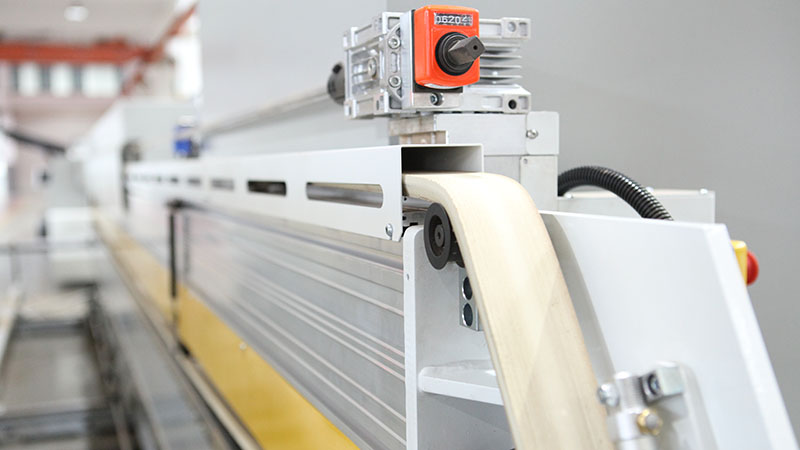

  • Panels evenly pressed by fiber reinforced V-belt to ensure smooth conveying, clean with no marks, resulting excellent edge banding quality; Auto raised up positioning by “dog head” in conveying chain help to convey narrow long work piece.

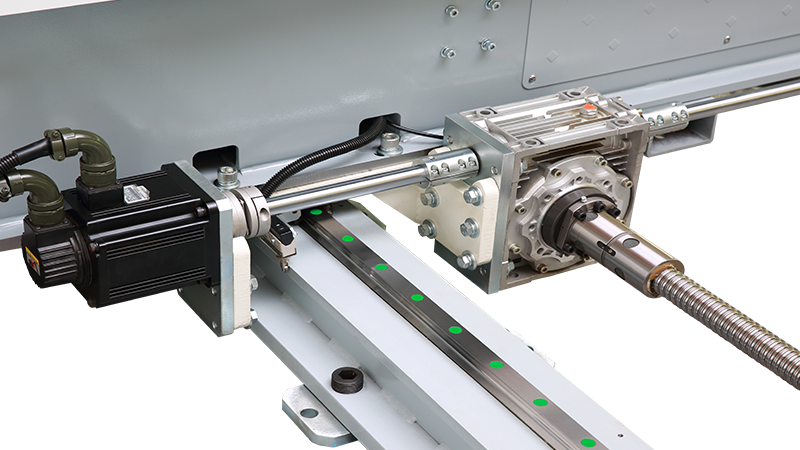

  • Width adjustment and positioning by 2 ball screw rods on two ends which were driven by precise servo motor guarantee the adjusting precision. Auto adjusting in between mechanism according to panel width;

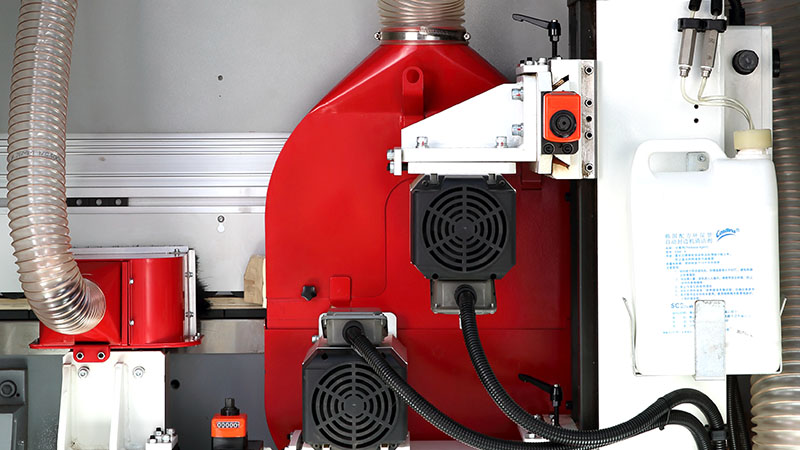

  • Hogging device with two diamond cutters to crash 10mm edge surface;

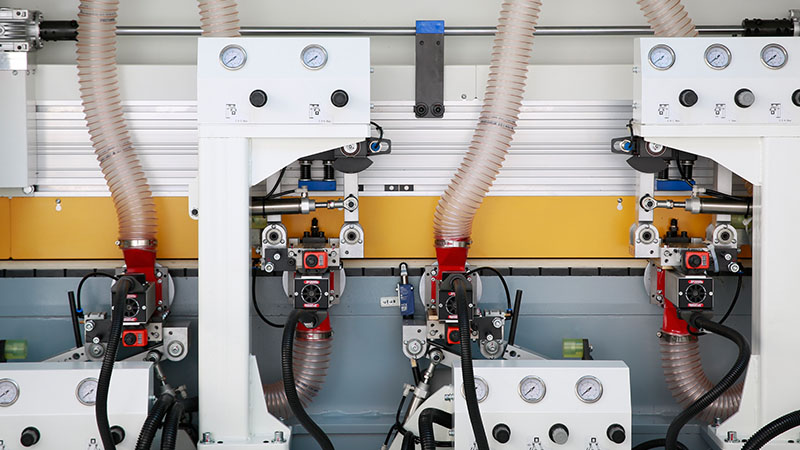

  • Fine trimming and scraping adjustment by pneumatic control.
  • 4 motors corner trimming,Precise corner trimming for better finish and speed.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NB8CS2IIPT

Max panel size

1220×2440mm

Min panel size

285×285mm

Panel thickness

9-60mm

Edge tape thickness

0.4-3mm

Feeding speed

16-20m/min

Dust extraction

φ125mm×20

Total power

105kw

Overall dimension

12000×4400×1950mm

Net weight

13800kg
