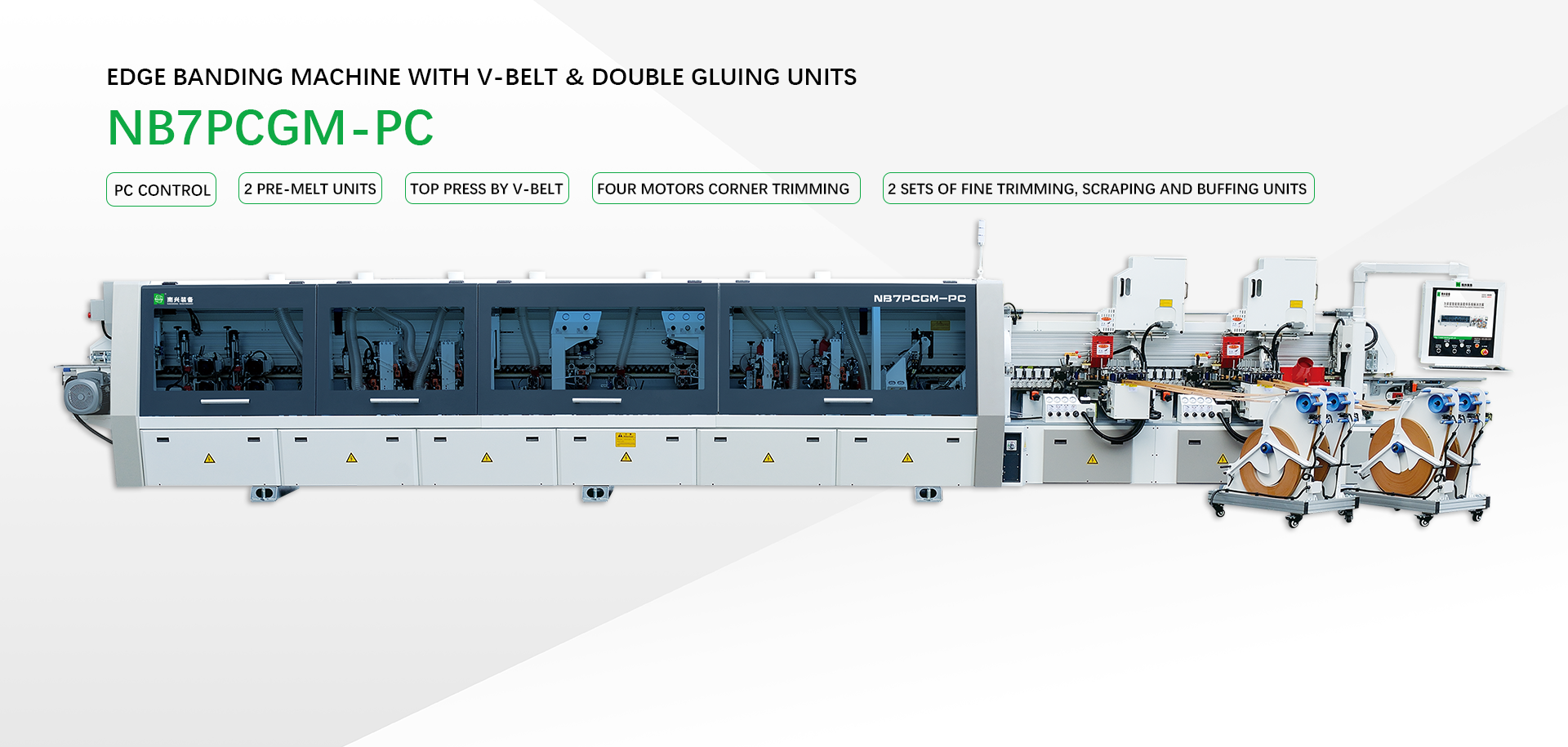

Edge Banding Machine with V-belt & Double Gluing Units NB7PCGM-PC

Highlights

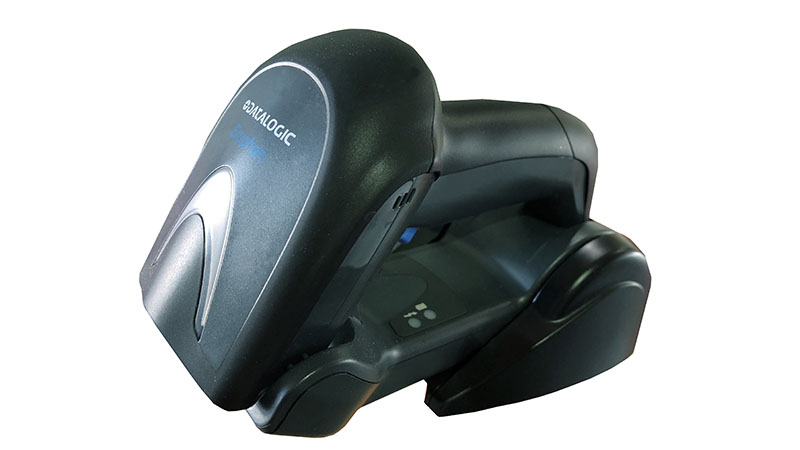

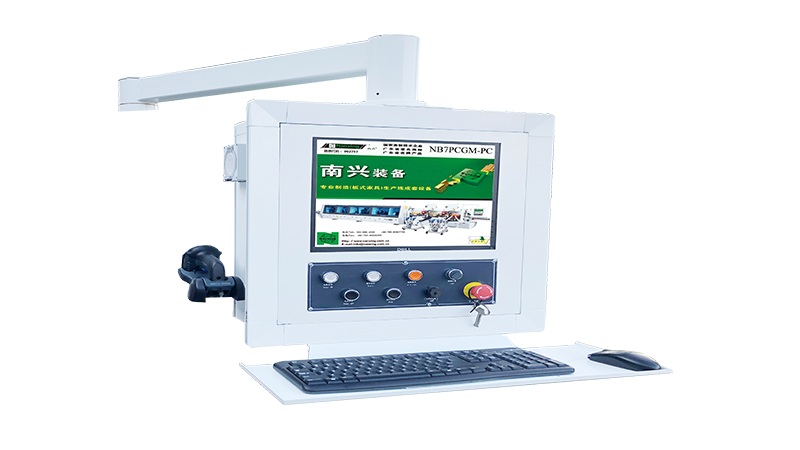

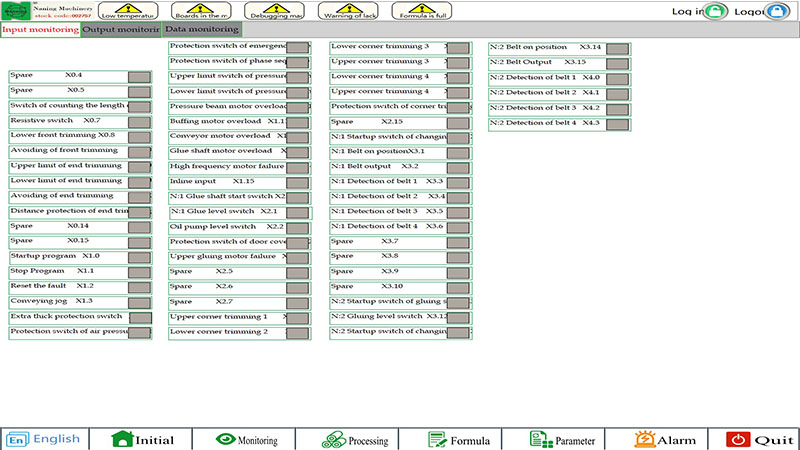

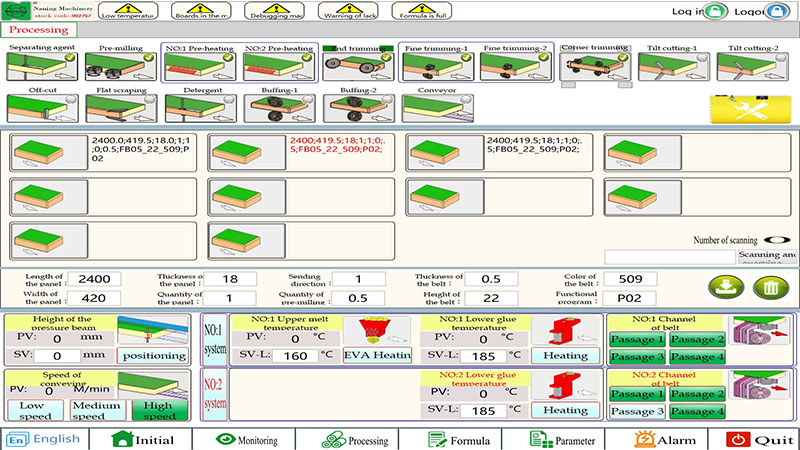

  • PC control with intelligent and user-friendly software, machine adjustment can be done by just scan QR code by bar code reader, easy and efficient.
  • With 2 pre-melt gluing units, switching from one of two glue colors fast to match edge tape, optional to choose PUR.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NB7PCGM-PC

Panel length

≥120mm(corner trim on≥200mm)

Panel width

≥80mm

Min panel size

200×80mm(corner trim on)

Panel thickness

9-60mm

Edge tape thickness

0.4-3mm

Feeding speed

18/22/26m/min

Feeding speed(corner trimming on)

22m/min

Dust extraction

φ125mm×8

Total power

42kw

Overall dimension

11200×1050×1850mm

Net weight

6110kg
