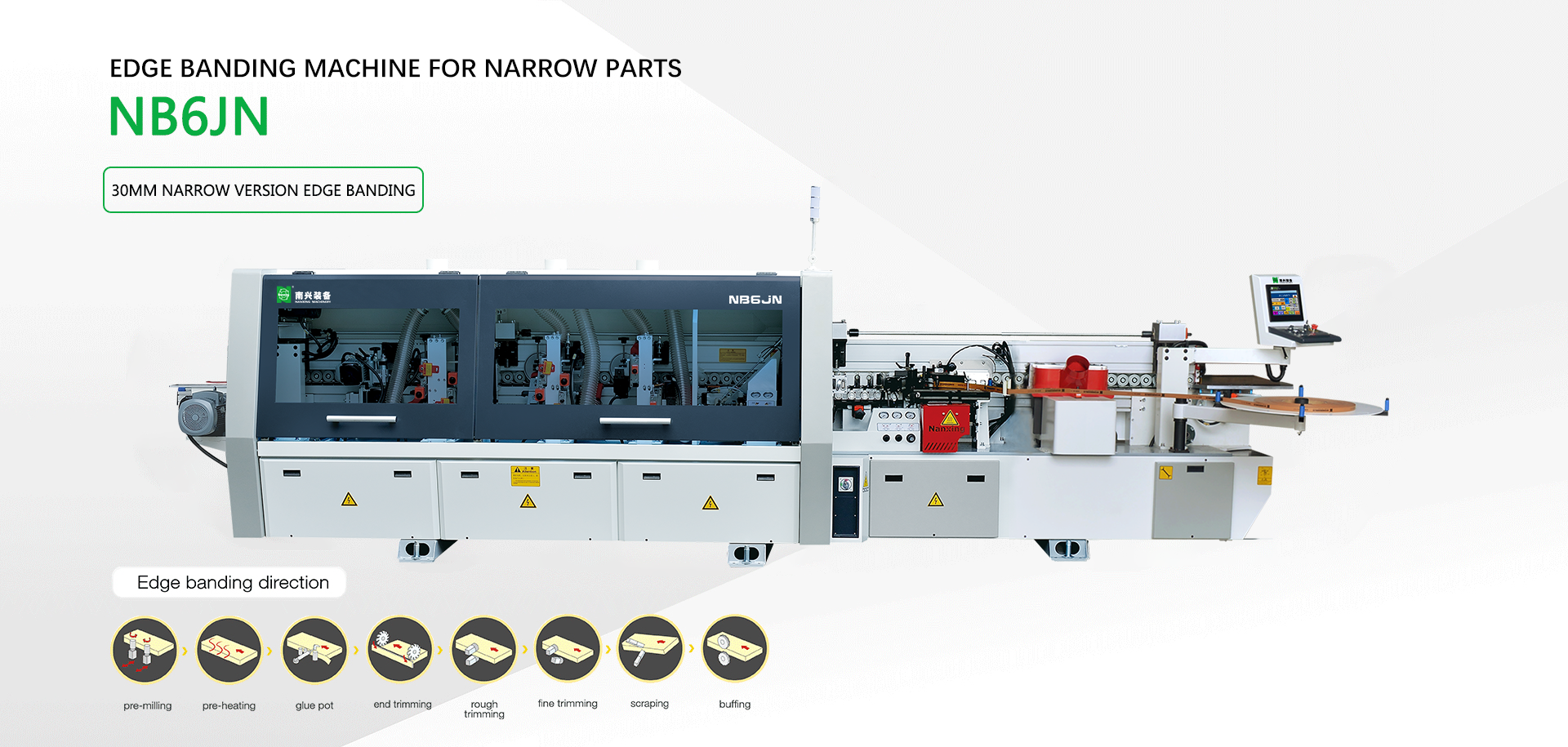

Edge Banding Machine for Narrow Parts NB6JN

Highlights

  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
  • Pre-milling for higher binding effect.

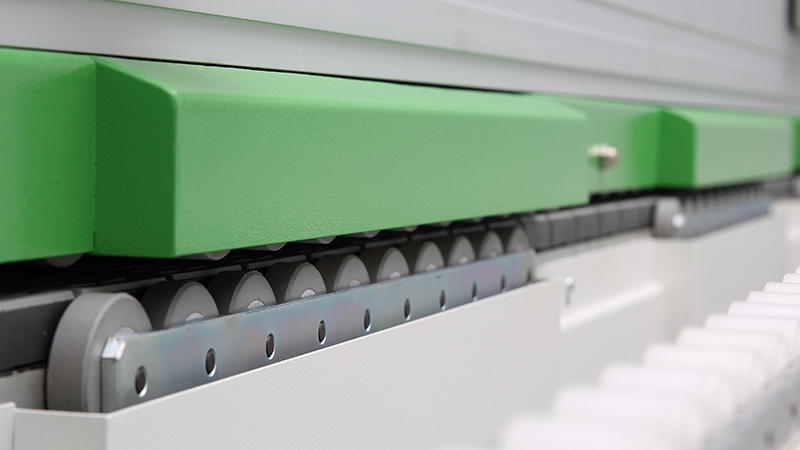

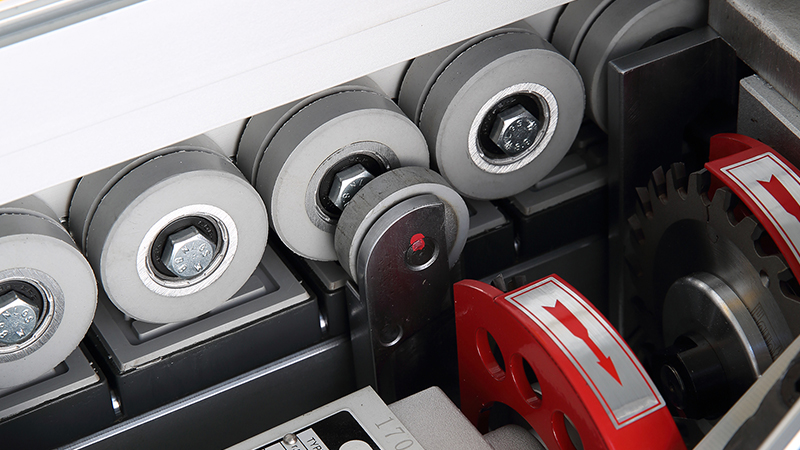

  • Compact press rollers cooperate with additional assistance rollers on front and in between make it possible to do edge banding work for min 30mm work piece in width.
  • Most electric components are in world famous brand.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NB6JN

Panel length

≥120mm

Panel width

≥30mm

Min panel size

300×30mm(long edge)

Panel thickness

9-60mm

Edge tape thickness

0.4-3mm

Feeding speed

16/20/24m/min

Dust extraction

φ125mm×4

Total power

30kw

Overall dimension

6600×1050×1650mm

Net weight

2460kg
