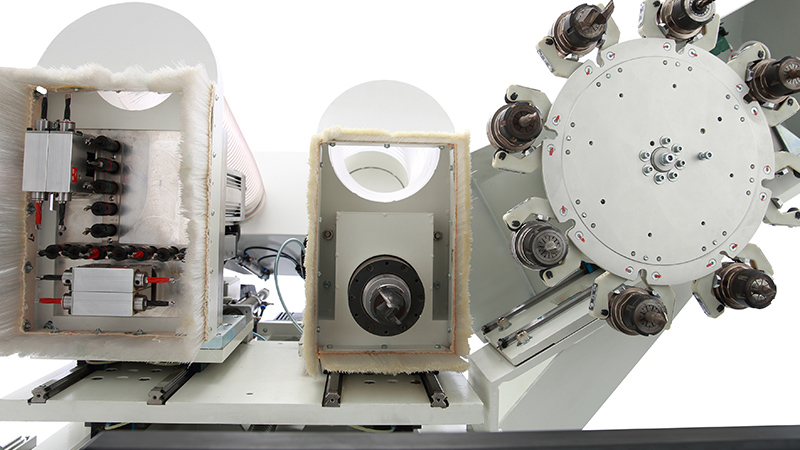

Powerful 12kw world famous main spindle, 12 vertical and 8 horizontal drills
Meet various processing requirements

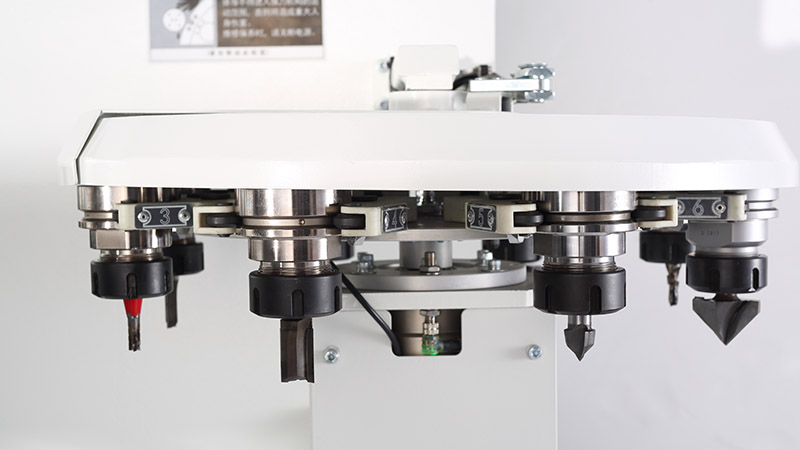

Auto tool changing

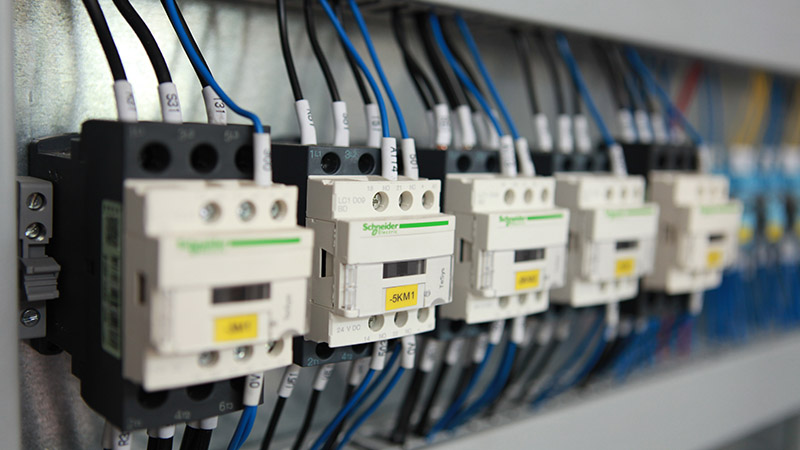

Electric components are in world famous brand
Nanxing Headquarters in Dongguan China
跨度可达16米,运输长度可达50米及更高值

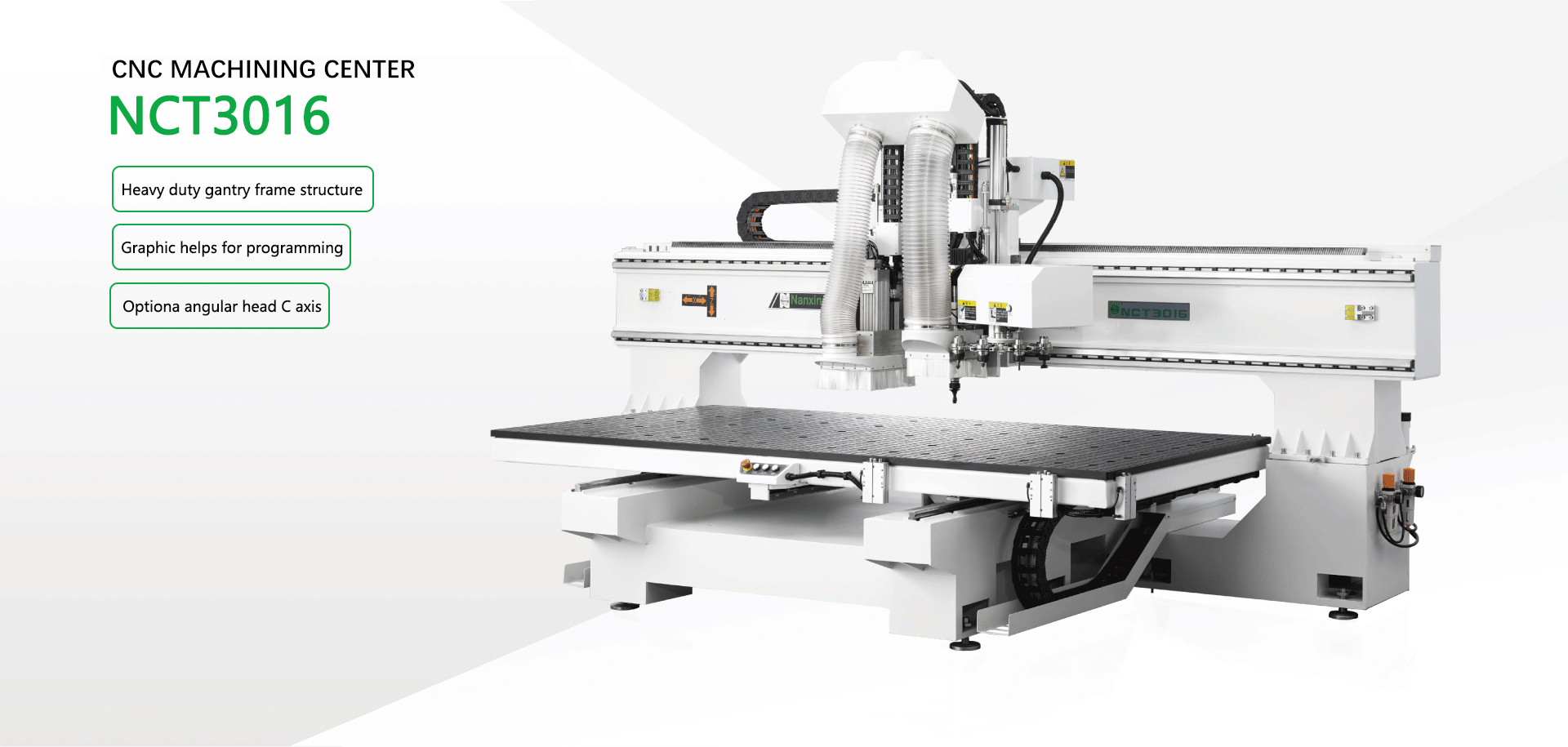

Model
NCT3016
Table size
3050×1600mm
Max speed
80/80/30 m/min
Main spindle power
12kw
Max rotate speed
24000rpm
ATC
8
Vertical drills
12
Horizontal drills
X axis:2×2 Y axis:2×2
Rotate speed
4000rpm
Vacuum pump
7.5kw
Suction flow rate
250m3/h
Dust extraction
φ200mm
Total power
28kw
Overall dimension
4300×2705×2700mm
Net weight
6500kg
