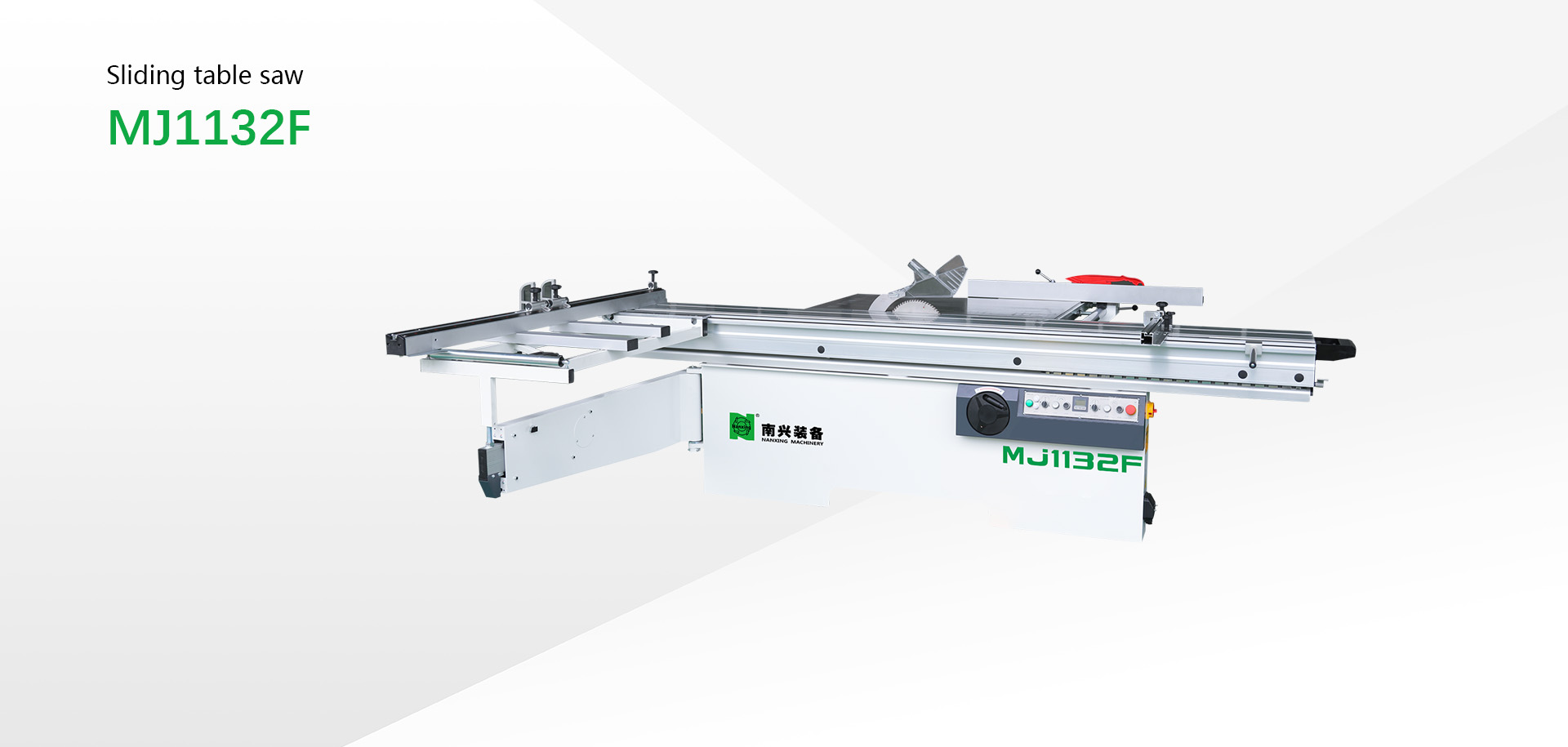

Sliding Table Saw MJ1132F

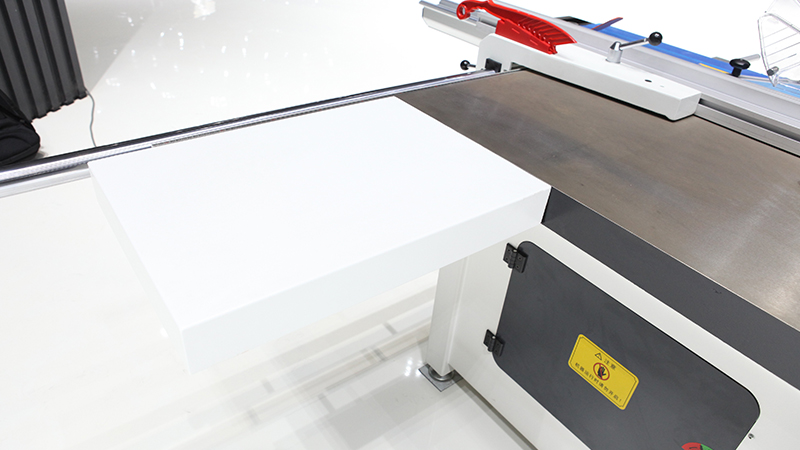

Sliding table saw MJ1132F makes panel cutting easy and flexible. Powerful saw motor, easy running sliding table, precise guiding board and tilt adjustment. Height of saw blade can be adjusted electrically, main saw blade rotating speed up to 5200rmp and max. cutting length 3100mm. You could use to cut all sorts of panels through simple operation just as your requirements.

Highlights

  • Strong machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;

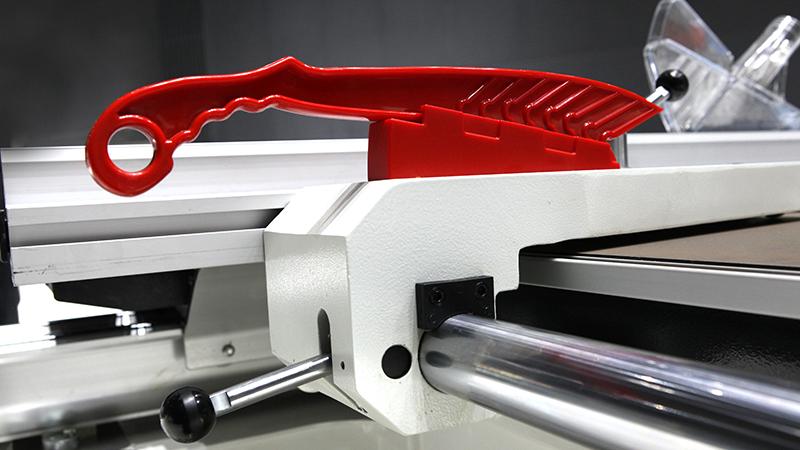

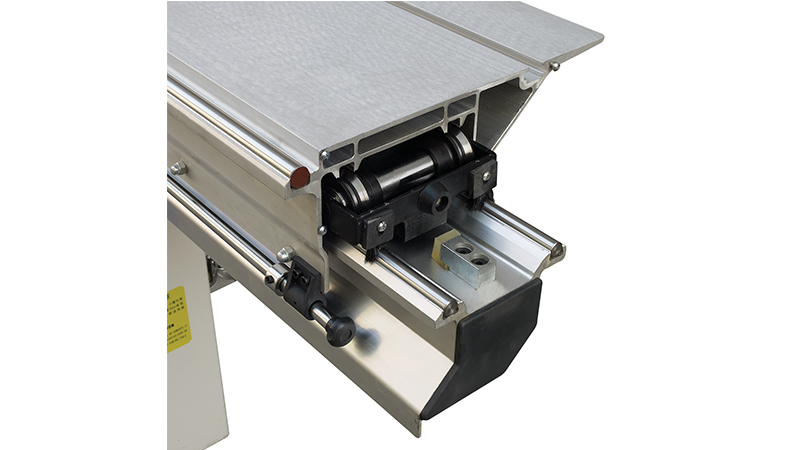

  • Powerful saw motor, easy running sliding table, precise guiding board and tilt adjustment.

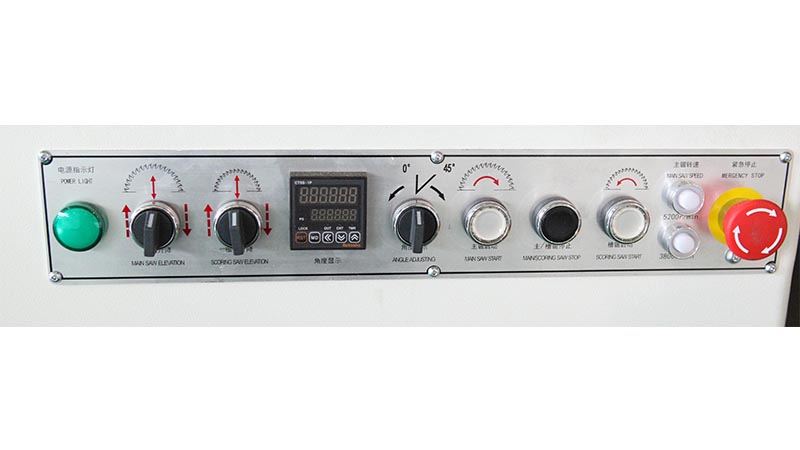

  • Height of saw blade can be adjusted electrically just by one button.
  • Main saw and scoring saw can tilt within 0-45°by using hand wheel.
  • Optional MJ1138F for your choice for cutting max 3.7m panel.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

MJ1132F

MJ1138F

Cutting length

3100mm

3700mm

0°cutting thickness

100mm

100mm

45°cutting thickness

70mm

70mm

Main saw rotating speed

3800/5200rpm

3800/5200rpm

Main saw motor

5.5kw

5.5kw

Scoring saw rotating speed

9000rpm

9000rpm

Scoring saw motor

1.1kw

1.1kw

Saw blade tilting

0-45°

0-45°

Dust extraction

φ120mm

φ120mm

Total power

6.6kw

6.6kw

Overall size

3400×3380×1400mm

3400×3380×1400mm

Net weight

1000kg

830kg
