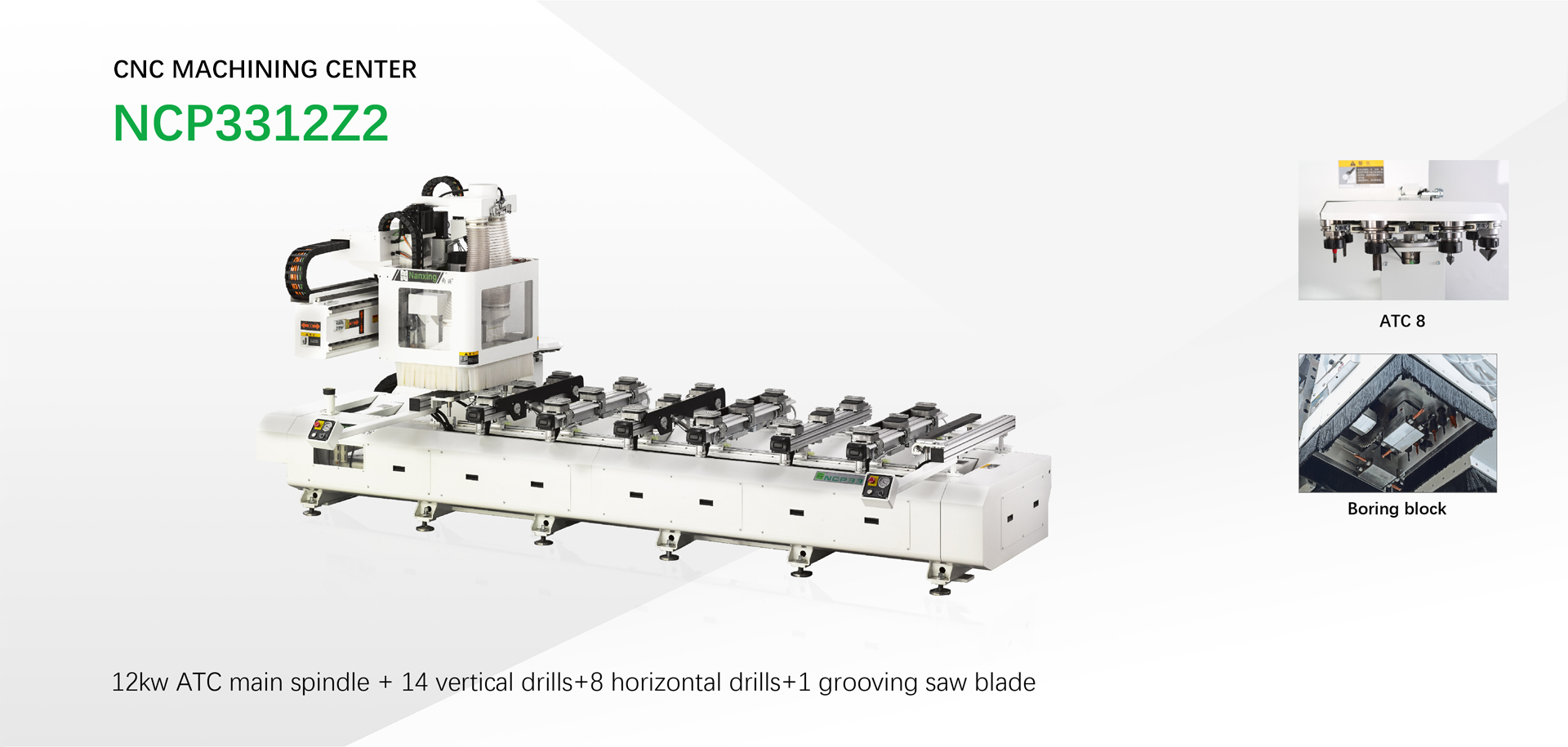

CNC with pod and rail table NCP3312Z2 is one of the machines must be used for the customized orders by furniture companies. This machine and the relevant furniture software can be linked without extra set up work, boring 5 sides and routing on top side in one process, also two working stations alternatively processing making production higher efficient. Moving axis X, Y, Z and change of tools are controlled by servo motors. Machine is designed with an open port to FCC software, easy to chase shapes of panels on drawing and their processing status, edit shapes, show data info of the order, and more functions.
Highlights
-
Heavy duty triangle support structure bed structure machine body and most mechanical machine parts are proceed by advanced CNC machines within Nanxing factories and through strict QC inspection hence higher stability and longer service life without deforming ;
-
Powerful imported main spindle 12kw, 24,000 rpm; HSK-63F; 14 vertical drills+8 horizontal drills+1 grooving saw blade;
-
The automatic servo tool change magazine with 8-slots, no need to change tool manually, maximum operation convenience, saves labor;
-
Six sets of table rails coupled with 3 kinds of suction pads can lock panels in different shape and size tightly while processing. Quick change as per requirements;
-
Safety light curtain is divided into two areas for dual working stations, won’t affect the normal processing of the other station when operator comes to put panel on one working station, ensure personal safety during the alternatively working on two working stations;
-
OSAI control system provides stable performance, powerful functions and ease of use.
