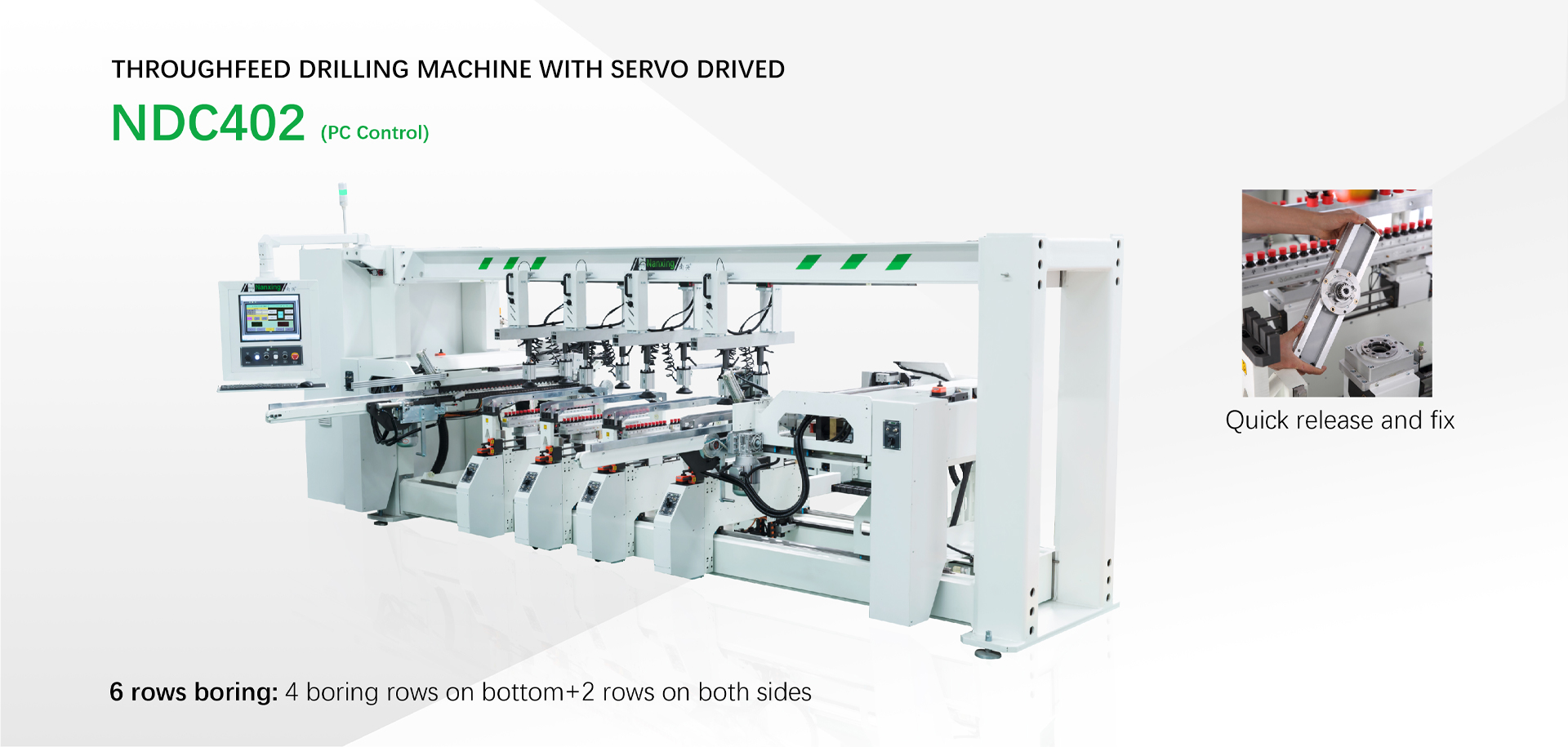

Throughfeed Drilling Machine with Servo Drived NDC402-PC Control

Highlights

  • Auto 6 Rows Boring Machine is recommended to use for mass production even with frequent adjustments of boring hole patterns from time to time by furniture companies. Movement of vertical boring rows is easy, fast and precise by servo motor corresponding to rack and pinion. PC controlled, vertical rows move automatically on the basis of hole position drawings thus the machine is easy to set in production line.
  • Auto feed-in and feed-out with 3 sections
  • Pneumatic locking device applied at vertical rows, for adjusting or changing of drilling block much faster and precise; Boring blocks with this flexibility can make different boring hole pattern easy.
  • 4 rows on bottom and 2 rows on side, up to 22pcs work pieces per minute

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NDC402

Max panel width

2550 mm

Min. panel width

250 mm

Max. panel thickness

50mm

Max feeding speed

78m/min

Vertical drills qty.

4 rows*11*2=88

Horizontal drills qty.

2 rows *21=42

Spacing of drills

32mm

Servo motor qty.

7

Max vertical boring depth

50mm

Max horizontal boring depth

40mm

Total power

28Kw

Approx. weight

5,200 kg

Overall dimension

5,540*3,660*1,950 mm
