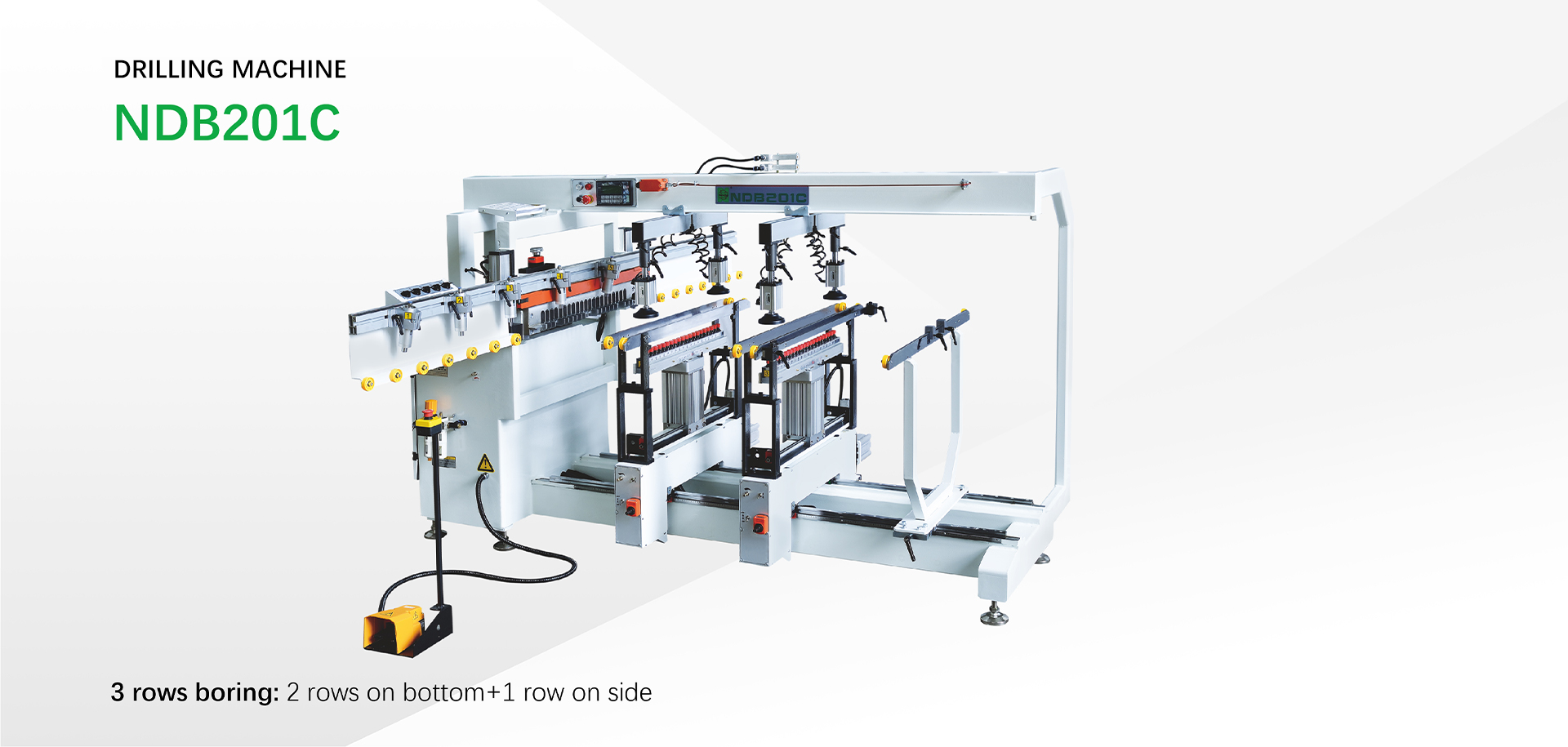

Drilling Machine NDB201C

Highlights

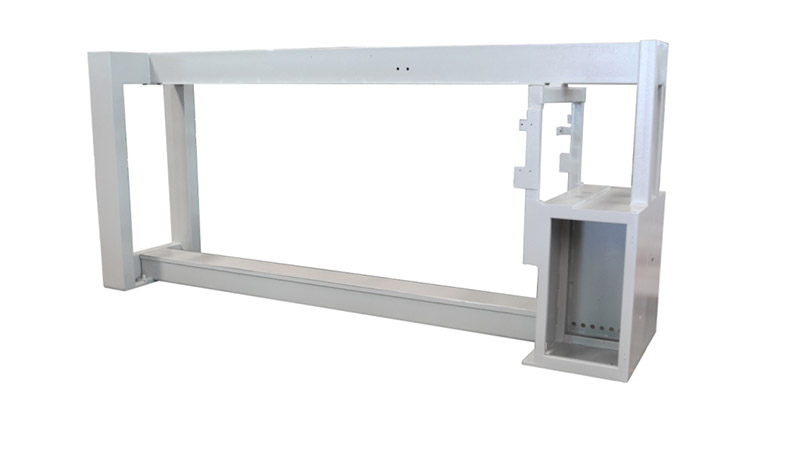

  • High tensile strength steel structure machine body and most mechanical machine parts are proceed by advanced CNC machines within Nanxing factories and through strict QC inspection hence higher stability and longer service life without deforming ;
  • Boring block could rotate to 90°, position is able to adjust lengthwise along ball screw rod.

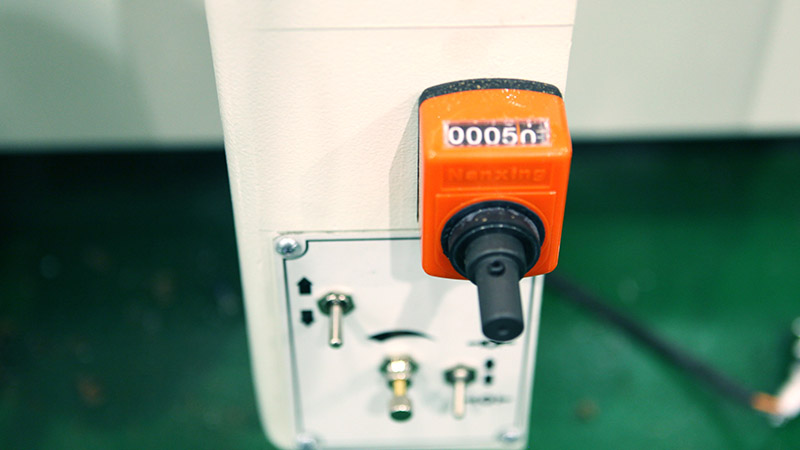

  • Boring rows position is available at a glance thanks to digital display on each boring row;

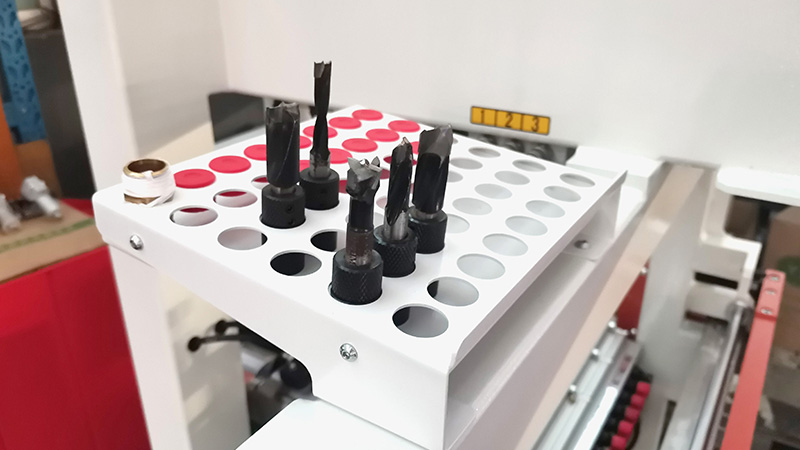

  • All drill bits are using quick coupling, also boring depth adjusting device and vertical drill bits feed decelerator device are standard with machine;

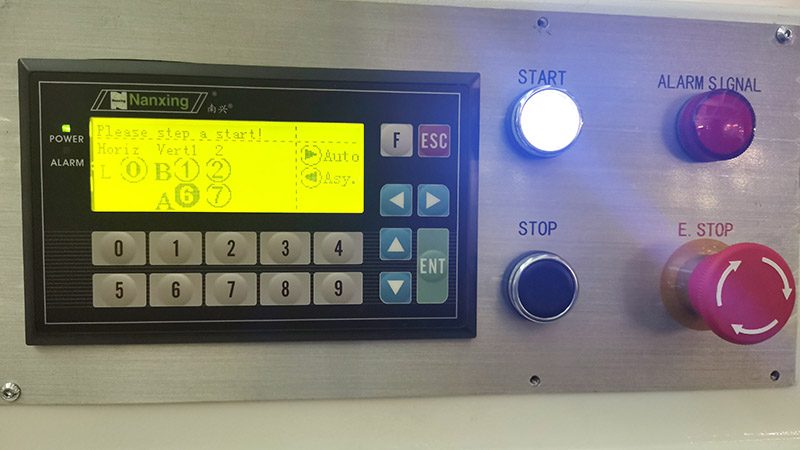

  • Machine is controlled by Delta PLC, operation panel is ease of use to select suitable rows according to different boring requirements;
  • Electric components are of high quality and famous brand.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NDB201C

Max panel width

1700mm

Min. panel width

90mm

Max. panel thickness

70mm

Spacing of drills

32mm

Max vertical boring depth

70mm

Max horizontal boring depth

40mm

Total power

4.1kw

Overall dimension

2550×2835×1510mm

Approx. weight

1100kg
