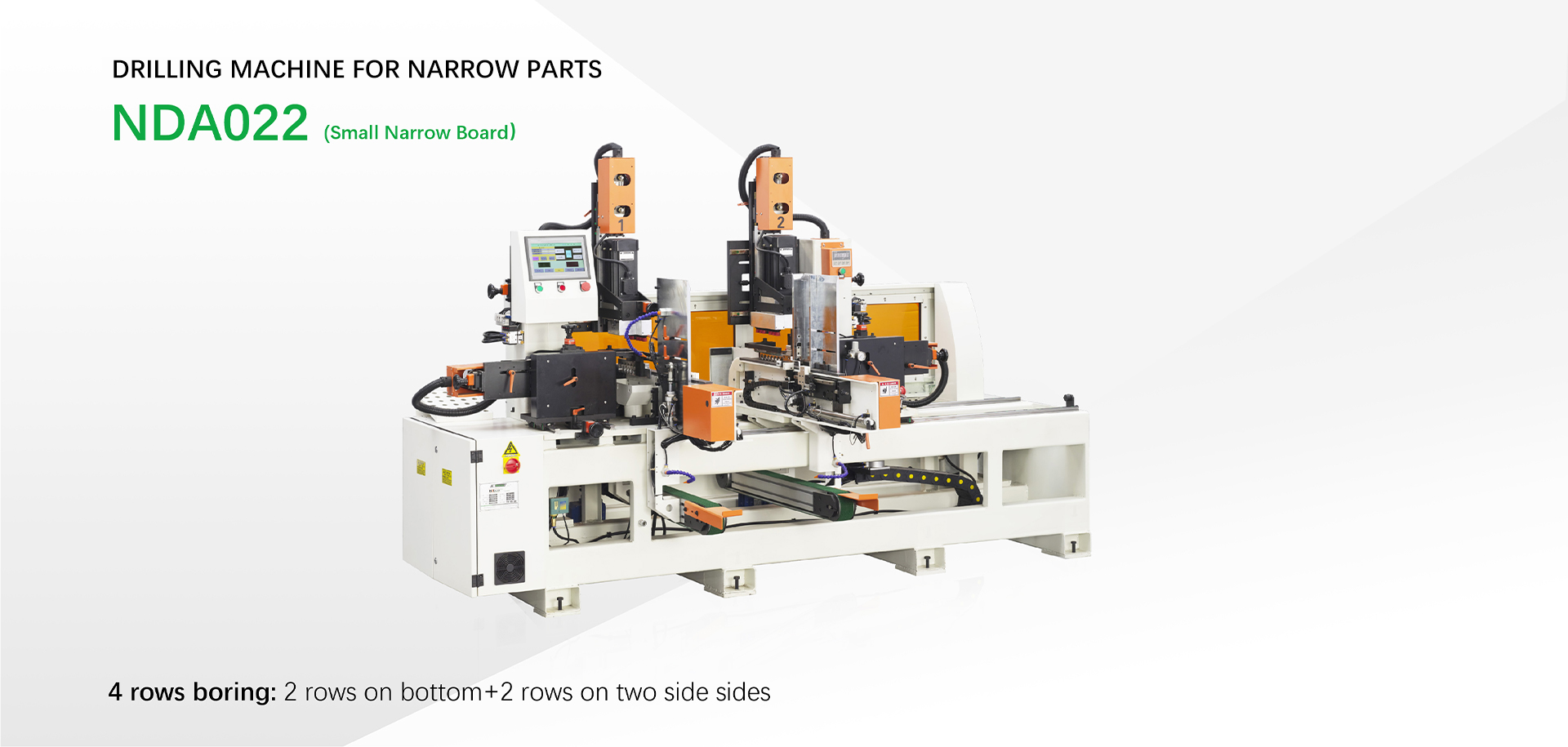

Drilling Machine for Narrow Parts NDA022-Small Narrow Board

NDA022, multi rows boring machine is special designed for boring work of small narrow board like drawer small furniture parts, feed in& out from front, this kind of return feed system plus simplified boring process make it possible to finish boring requirement in one process. Boring block could be customized as per your boring requirement.

Highlights

  • Return feed system, feed in& out from front, boards are able to return automatically after boring, one operator is enough for putting and discharge boards, fast and efficient;
  • Independent boards feeding storage protects boards surface effectively;
  • Two vertical rows on top and two horizontal drills on side sides. The design 7 drills on each row can meet various boring requirements of small boards. Horizontal and vertical rows are able to work alternately or synchronously.
  • Boring rows position is easy to adjust by using a digital display sensor, easy operation and training;
  • Touch screen, boards counting, positioning, storage, boring are available at a glance thanks to inventive system, simplifies the operation.

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NDA022

Max panel width

15-260mm

Min panel length

200mm(feeding by air)

Max panel length

1500mm

Space of drills

32mm

Panel thickness

10-25mm

Performance

18-22PCS/min

Motor power

1.5kw×4

Total power

6.5kw
