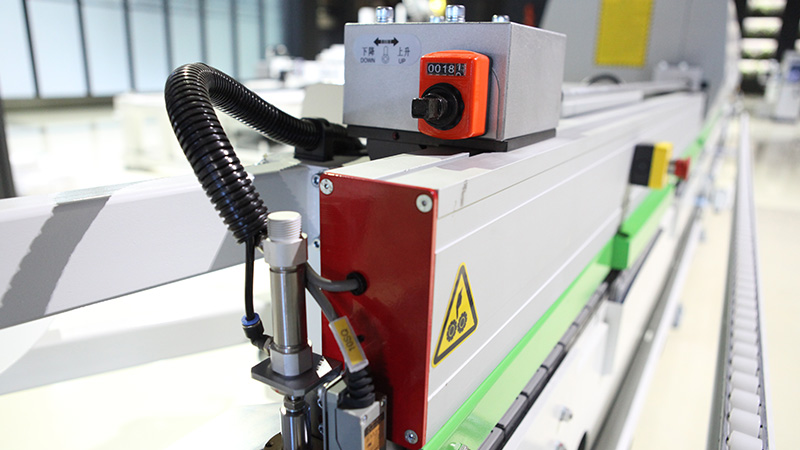

The height of presser beam adjusted automatically
Strong Guiding plate

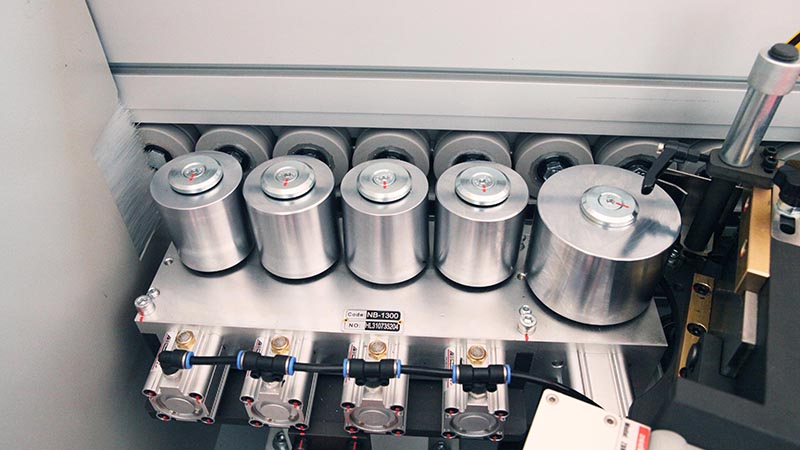

Edge tape presser

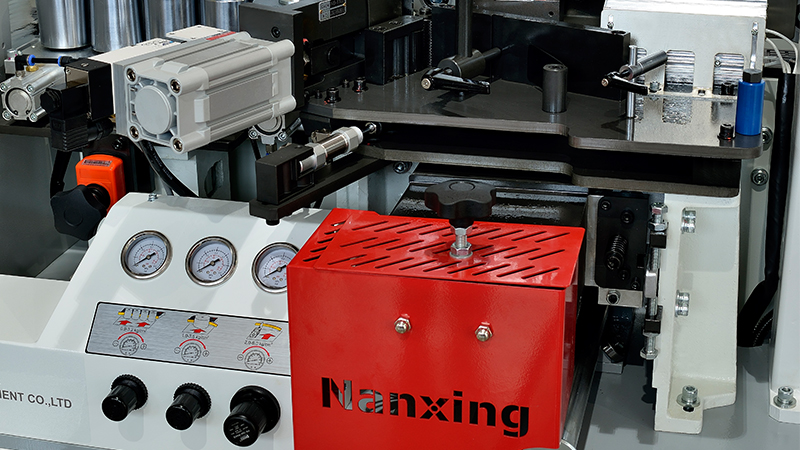

Teflon coated glue pot with a high capacity ( 5L)

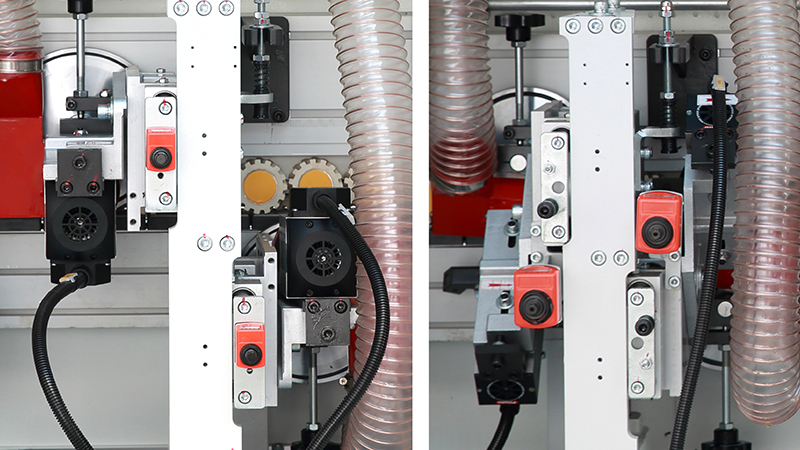

Rough trimming and fine trimming

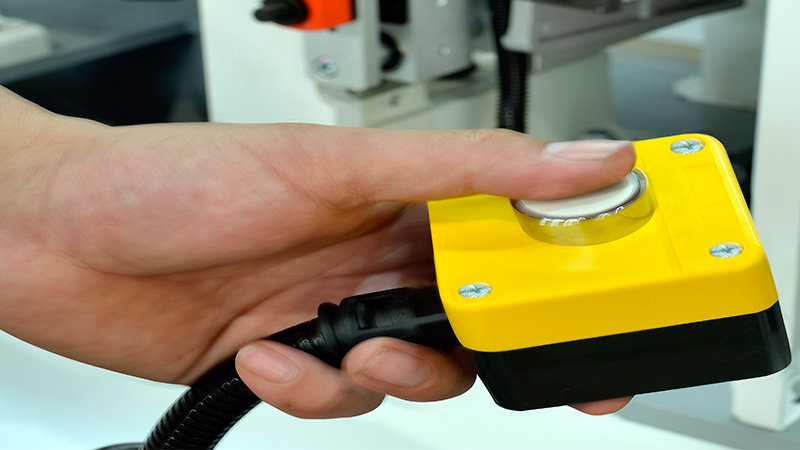

Long power switch provides max convenience of machine setting up
Nanxing Headquarters in Dongguan China
跨度可达16米,运输长度可达50米及更高值

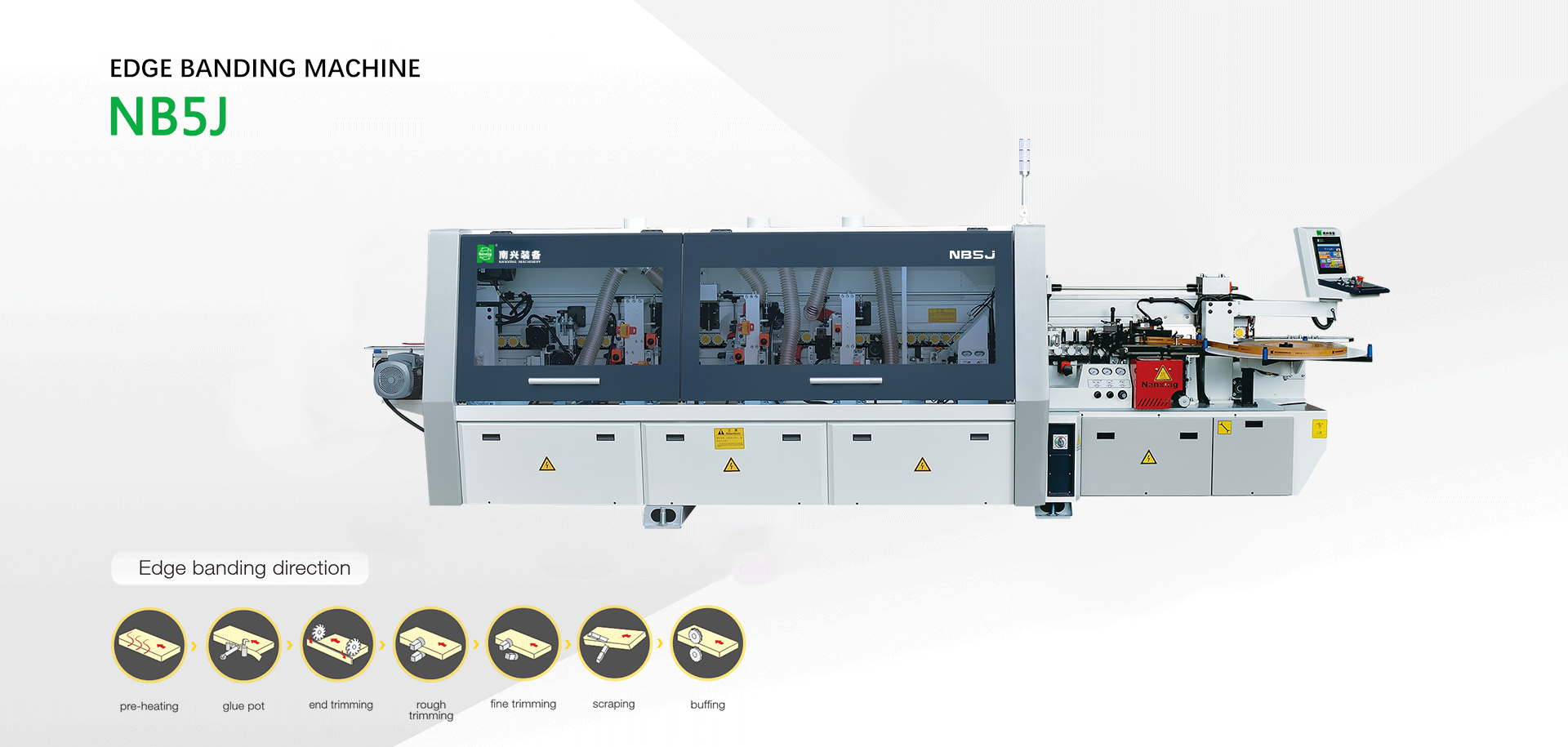

Model
NB5J
Panel length
≥120mm
Panel width
≥40mm
Min panel size
120×40mm
Panel thickness
9-60mm
Edge tape thickness
0.4-3mm
Feeding speed
16/20/24m/min
Feeding speed(corner trimming on)
----
Dust extraction
φ125mm×3
Total power
14.4kw
Overall dimension
5500×1050×1650mm
Net weight
1880kg
