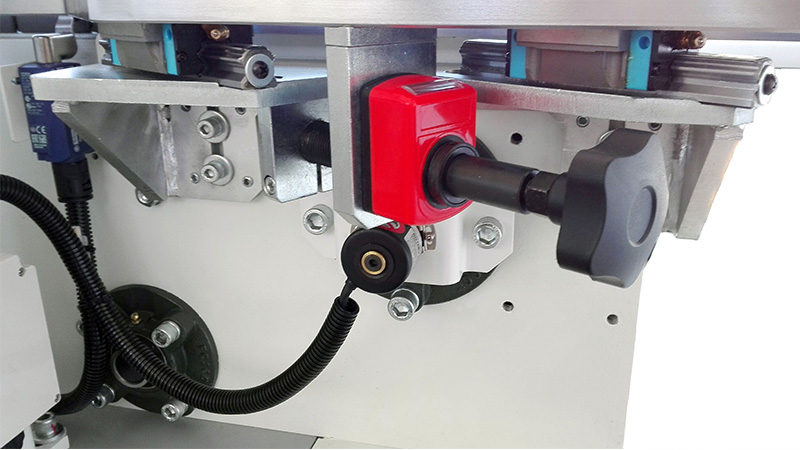

Up and down of pressure beam is automatic

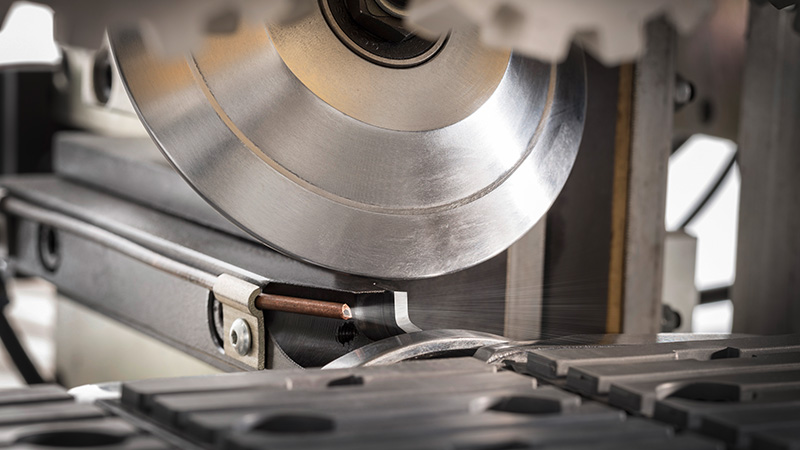

Pre-milling-cutters-in-diamend-blades to ensure smooth workpiece edge

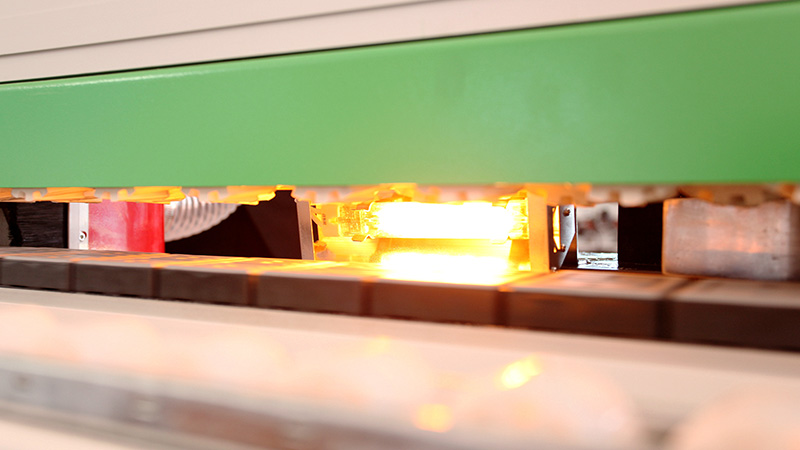

Pre-heating is designed for zone in wet and lower temperature

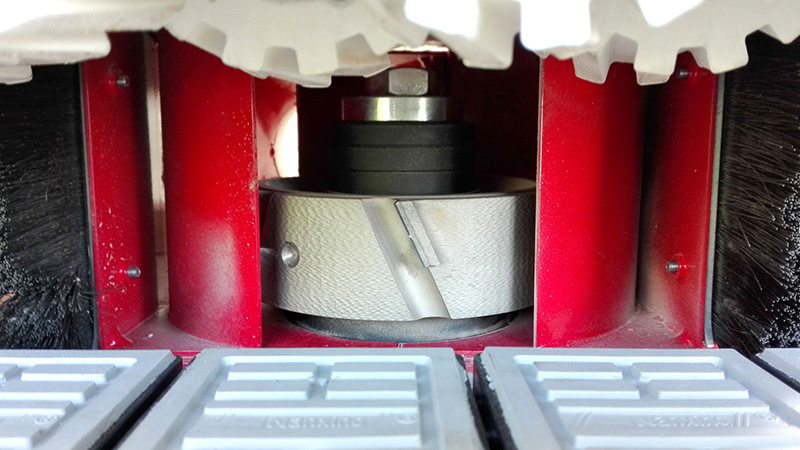

Rough and fine trimming
Scraping with air jet
Strong guiding board
Nanxing Headquarters in Dongguan China
跨度可达16米,运输长度可达50米及更高值

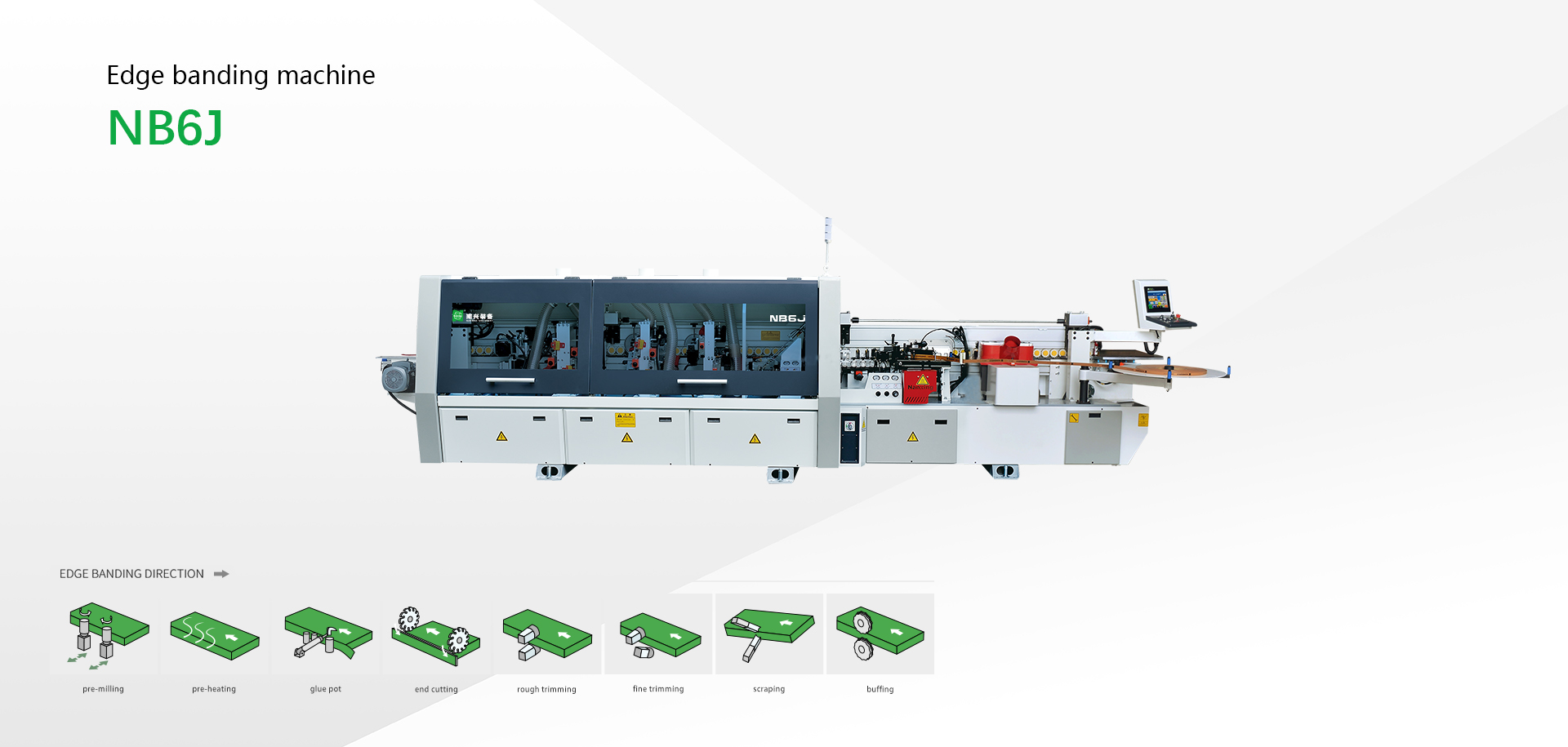

Model
NB6J
Panel length
≥120mm
Panel width
≥40mm
Min panel size
120×40mm
Panel thickness
9-60mm
Edge tape thickness
0.4-3mm
Feeding speed
16/20/24m/min
Feeding speed(corner trimming on)
----
Dust extraction
φ125mm×4
Total power
23kw
Overall dimension
6600×1050×1650mm
Net weight
2400kg
