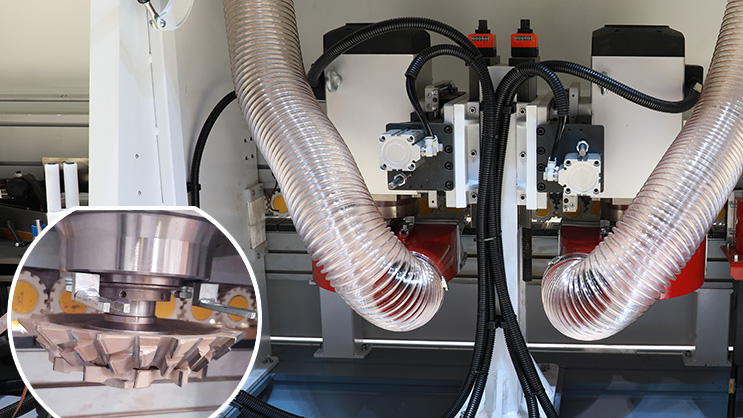

1- 2pcs strong forming bevel milling cutters by powerful motors

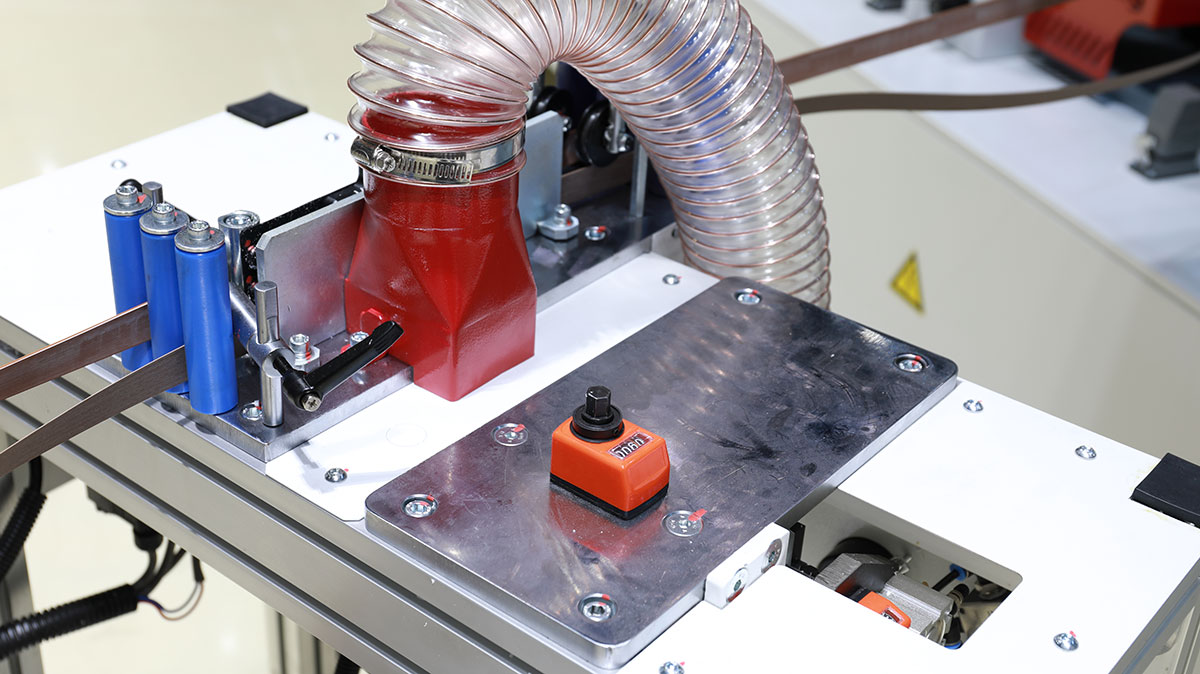

2- Depth and position of the groove adjustable by the digital display knob, easy operation.

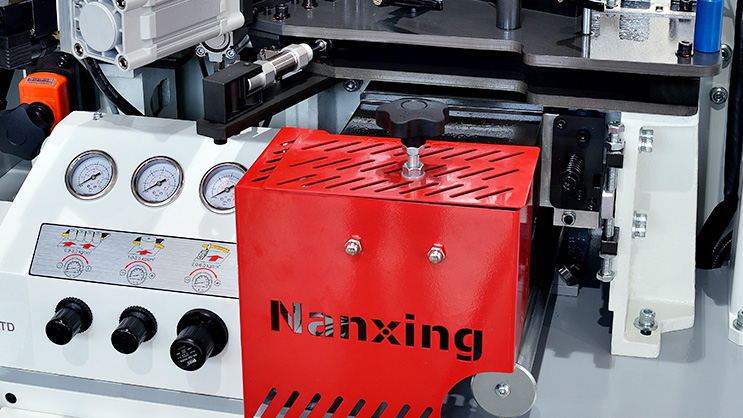

3- Gluing unit for-fully straight edge banding

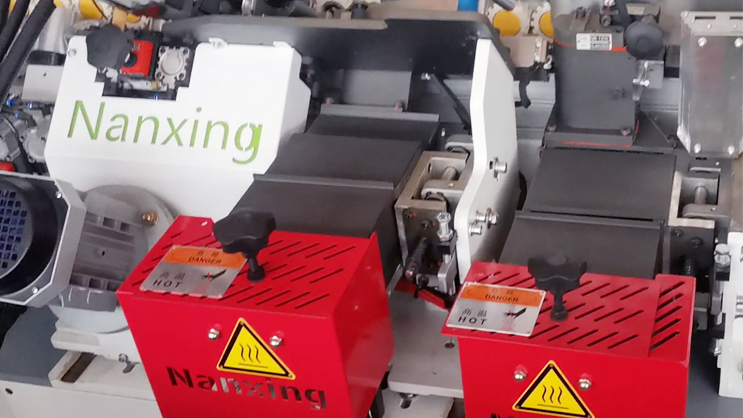

4- Gluing unit for half bevel and fully bevel edge banding

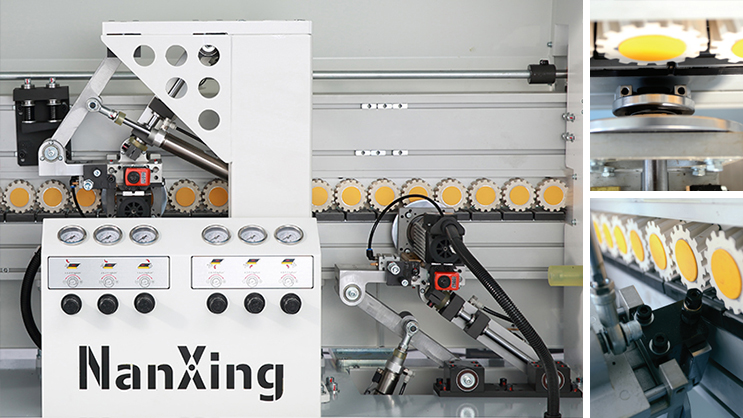

5-Pro-nesting tracing structure on trimming units

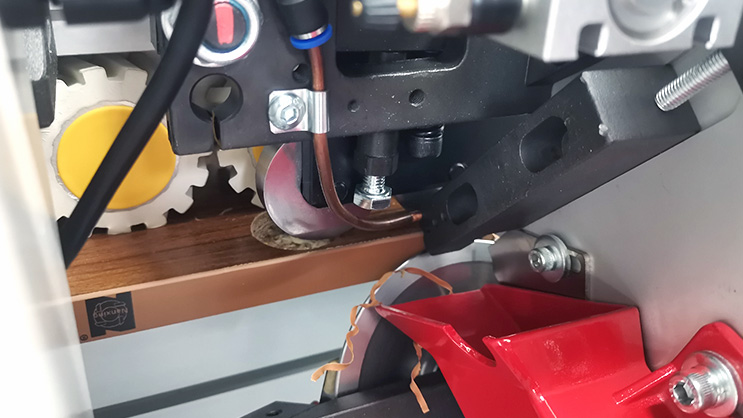

6- Corner trimming

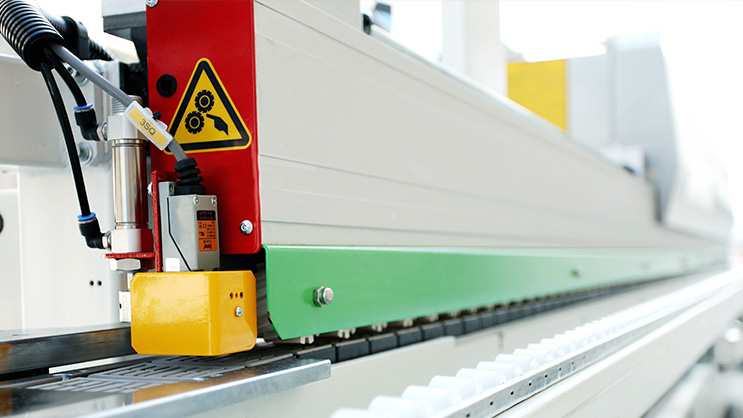

7- Pressure beam lift automatically and with safety device
Nanxing Headquarters in Dongguan China
跨度可达16米，运输长度可达50米及更高值
Model
NB5JN
Panel length
≥120mm(straight edge)
≥350mm(soft forming)
Panel width
≥120mm
Min panel size
≥280×120mm(straight edge)
≥350×120mm(soft forming)
Panel thickness
≥9-60mm(straight edge)
≥18-25mm (soft forming)
Edge tape thickness
0.4-2mm
Feeding speed
12-20m/min(straight edge)
12-14m/min(soft forming)
Bevel angle
0-60°(soft forming)
Min size of inclined right-angled sides
3-20mm(soft forming)
Dust extraction
φ125mm×7
Total power
35kw
Overall dimension
9950×1940×1780mm
Net weight
5000kg
