Highlights
-
With 2 gluing units, including one set of glue pot and one pre-melt glue, switching from one of two glue colors to match edge tape, optional to choose PUR.
-

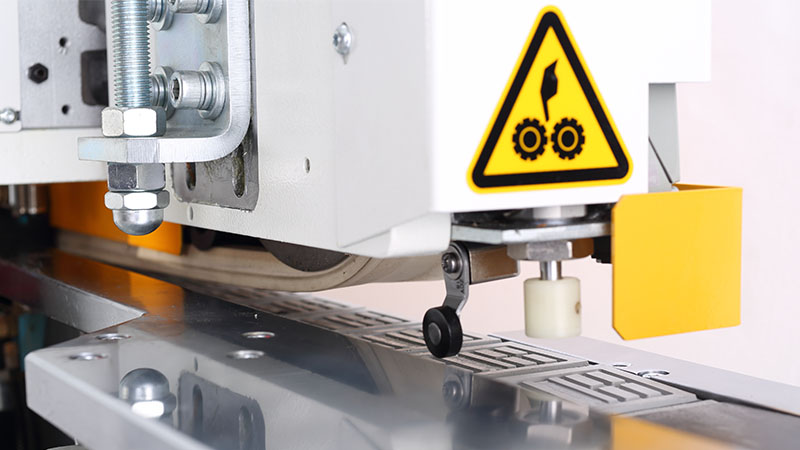

Panels evenly pressed by fiber reinforced V-belt to ensure smooth conveying, clean with no marks, resulting excellent edge banding quality
-
Pre-melt gluing unit saving heating-up time, reducing the carbonization and vulcanization from burning up of glue resins, also binding better between tape and panel.
-

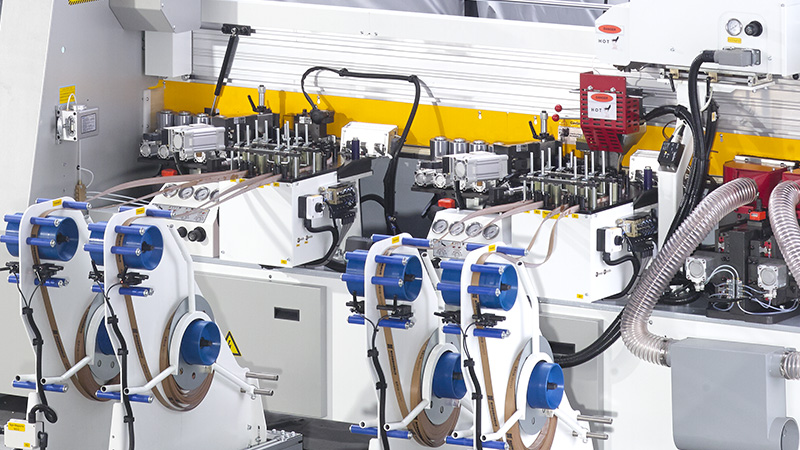

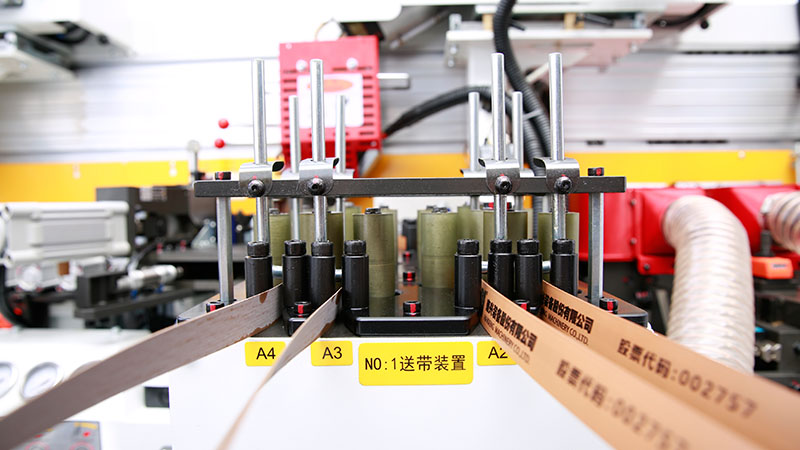

8 tapes changing system with servo edge tape feeder, Compared with traditional edge tape feeder, higher trimming precision controlled by servo motor, cost saving up to RMB 20-50K per each machine due to shorter hanging out of tape at two ends.
-

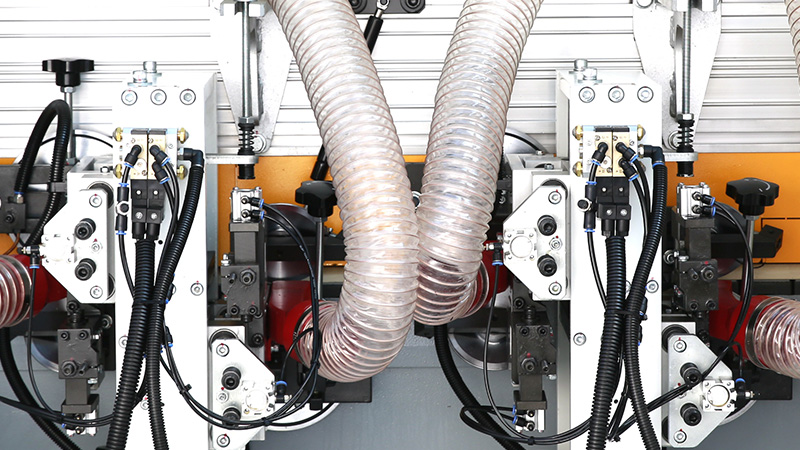

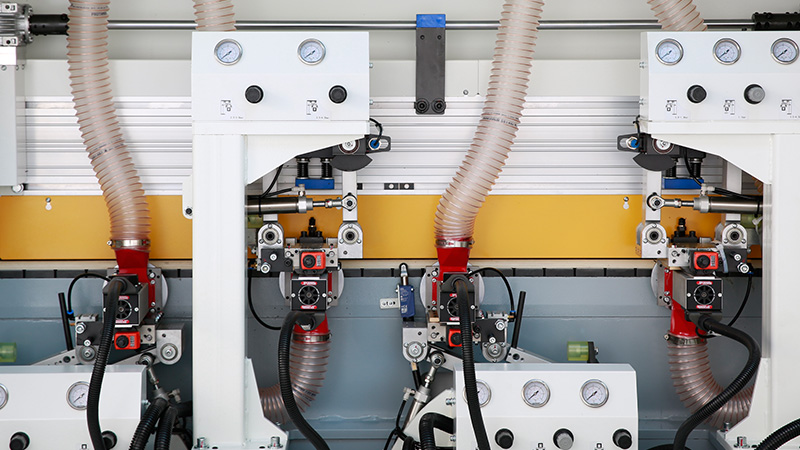

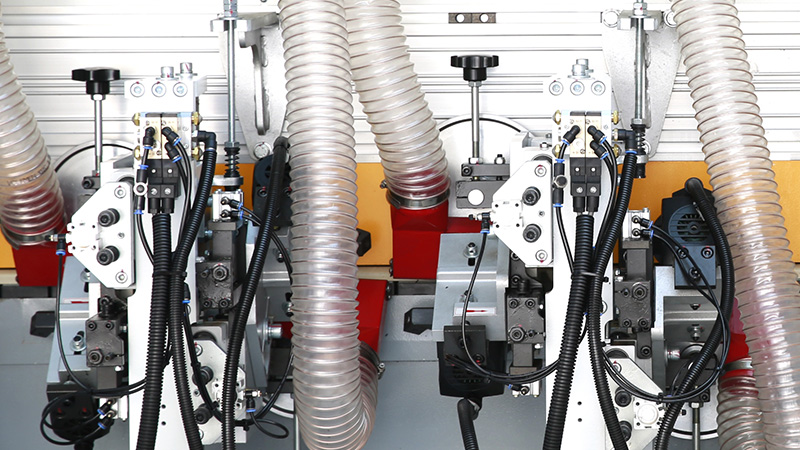

Fast switch between thin tape and thick tape due to adjustable 2 sets of each fine trimming units and scraping units, resulting shorter setting up time, stable quality, max convenience and higher productivity.
-

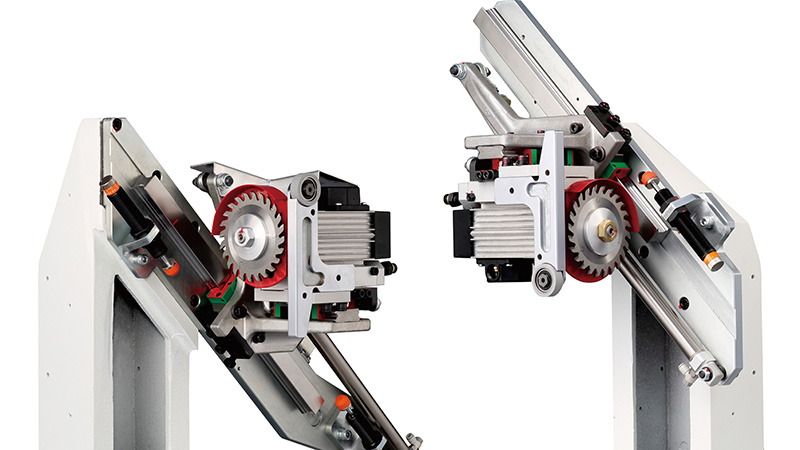

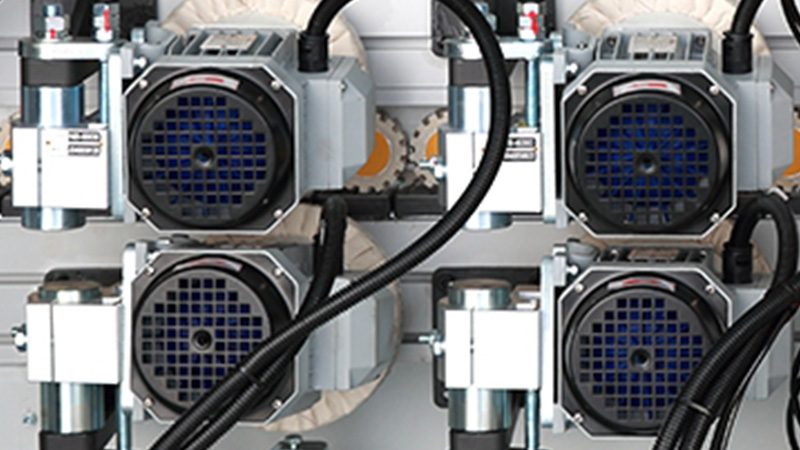

4 motors corner trimming，Precise corner trimming for better finish and speed.
Option
Standard model with 2 tapes changing system, one set of rough trimming, fine trimming, scraping.
