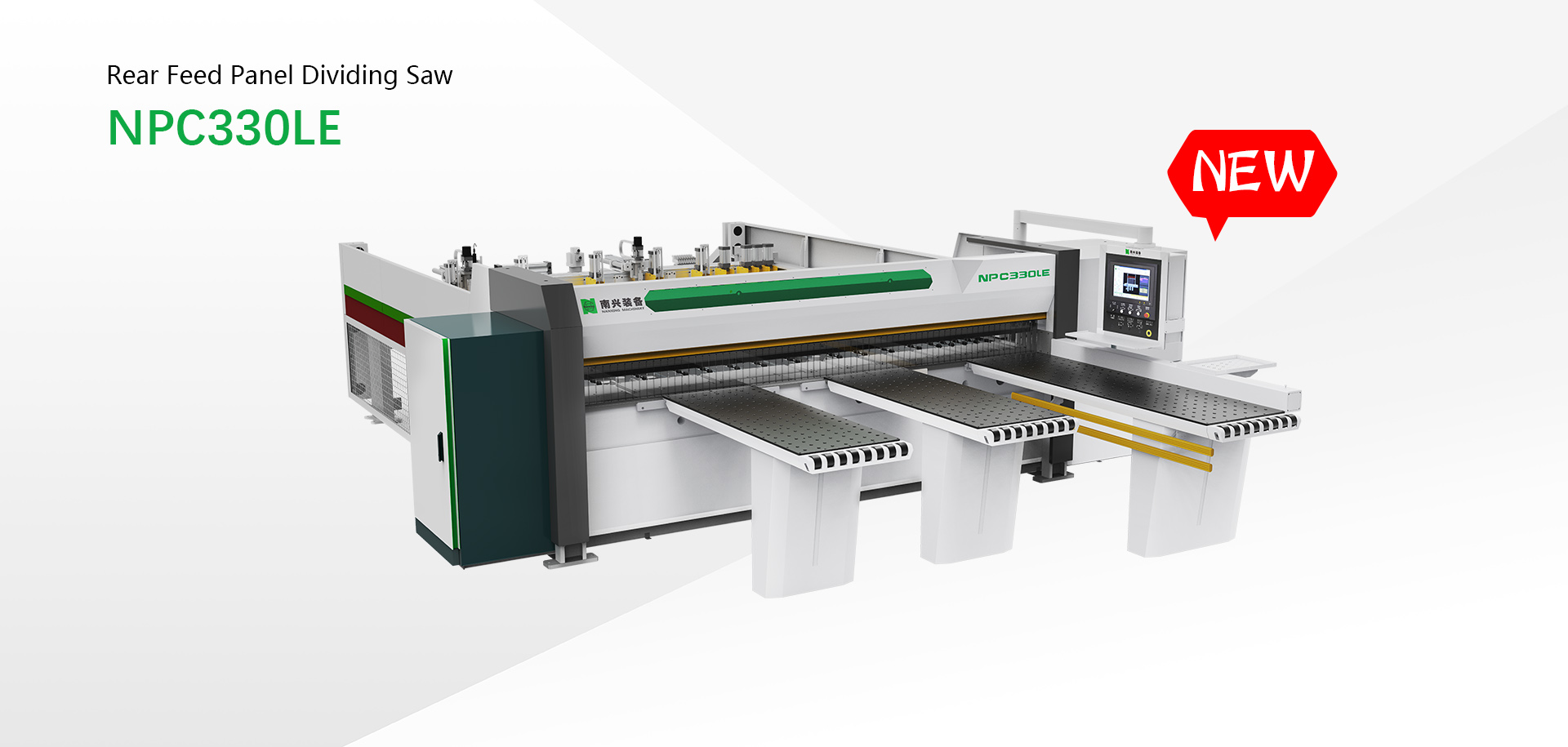

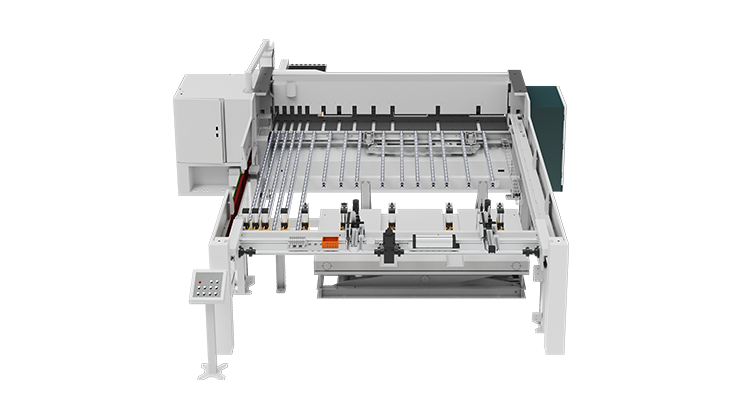

Rear Feed Panel Dividing Saw NPC330LE

Highlights

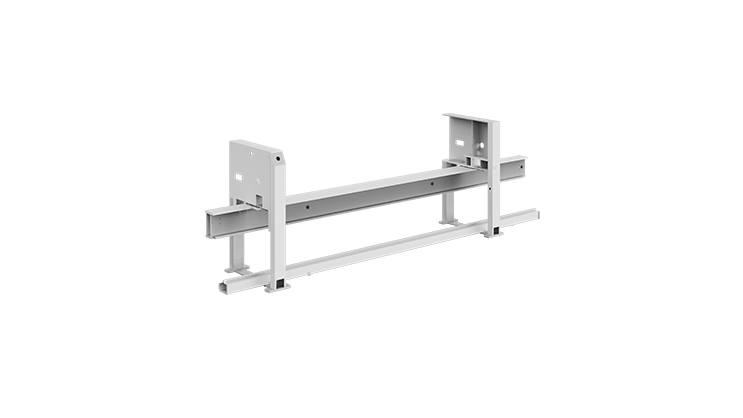

  • Bridge type frame made of special steel

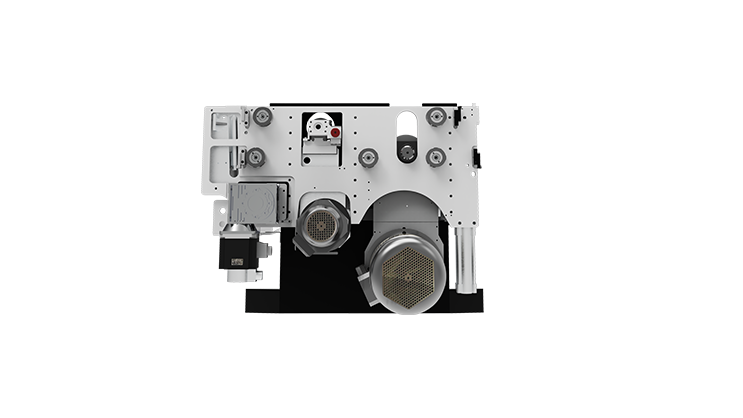

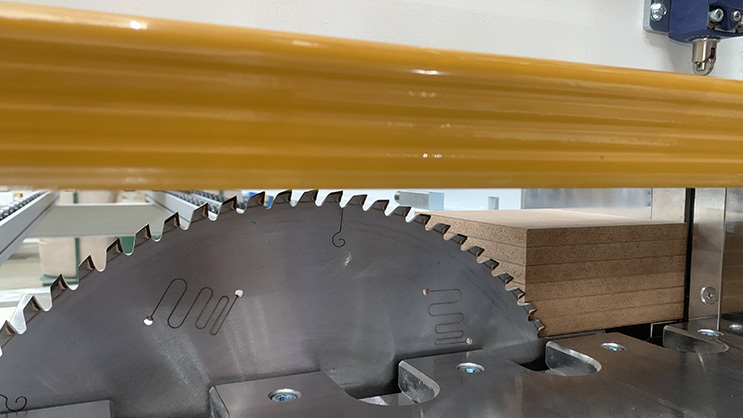

  • The saw car is driven by a servo motor and a rack and pinion drive, which runs smoothly

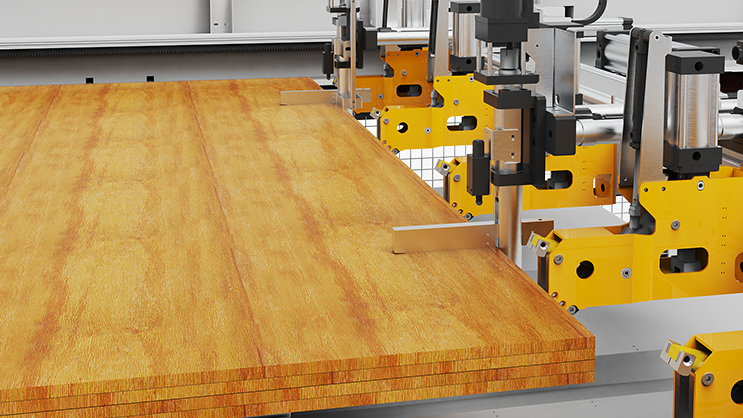

  • Equipped with 9 clamps, large cross-section formed aluminum material, precise positioning for grabbing and pushing materials

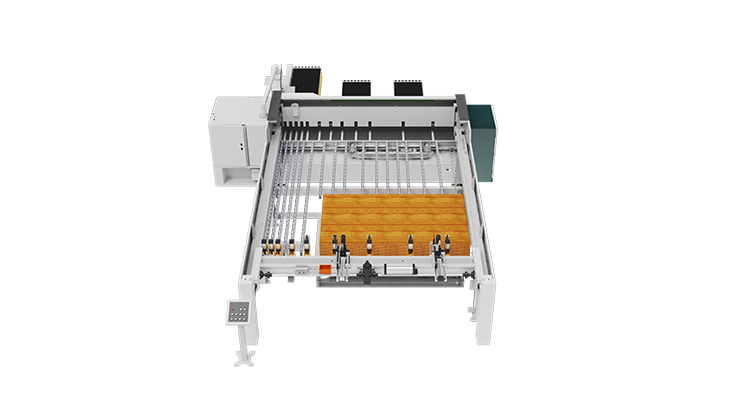

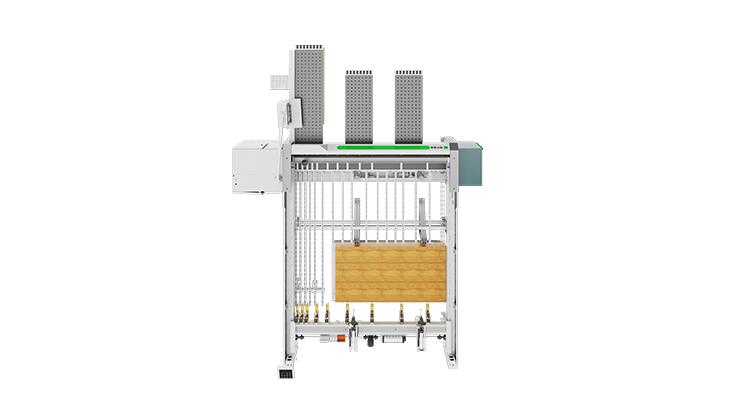

  • Post-feeding lifting table feeding, saving labor and time

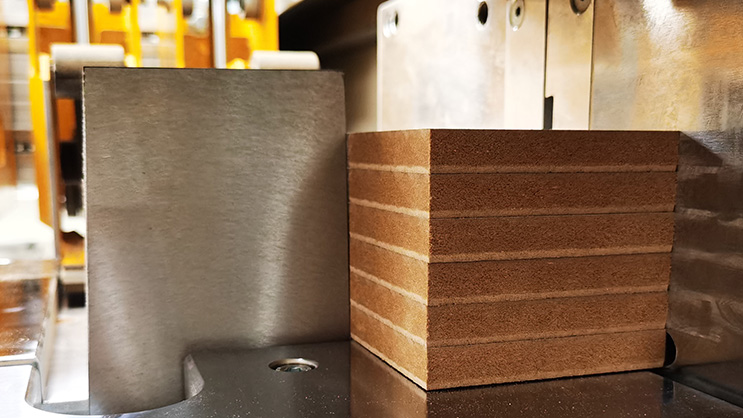

  • Equipped with side lean device, narrow and long board positioning is more accurate

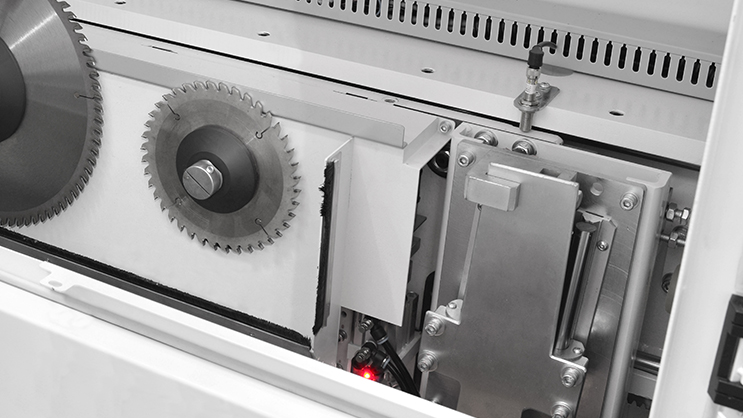

  • Automatic positioning of saw blade and pressure beam can realize automatic positioning stroke according to the thickness of the workpiece

More information you need?
Contact us now!

Nanxing Headquarters in Dongguan China

+86-0769-88803333-872 info@nanxing.com.cn Information form

Model

NPC330LE

Cutting length

3200mm

Cutting thickness

90mm

Main saw rotating speed

3910rpm

Scoring saw rotating speed

4300rpm

Saw carriage forward speed

90 m/min

Saw carriage backward speed

120 m/min

Main saw motor

15kw

Auto feeding speed

85 m/min

Rear feeding speed

60 m/min

Dust extraction

φ150mm×3

Total power

26kw

Overall size

7500×5400×1810mm

Net weight

6500kg
