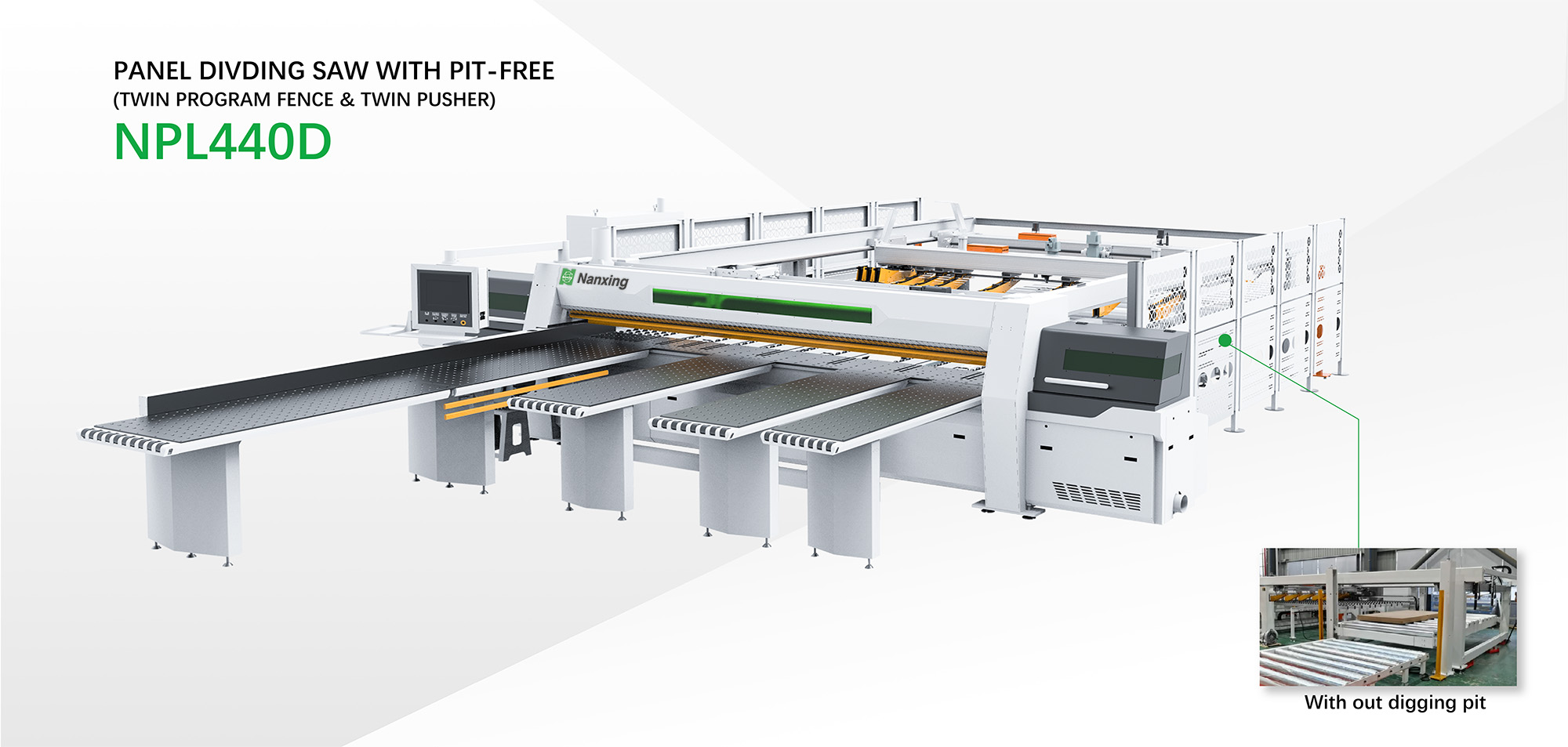

Panel Dividing Saw with PIT-FREE(Twin program fence &twin pusher) NPL440D

Highlights

• Independently working 2 sets of clamps of different functions built within machine, clamp device and pusher bar setting independently, cutting boards synchronously in different sizes either both boards by crosswise cut or combined differently with crosswise and lengthwise cut, increasing cutting capacity by 30%.
• Both main saw and scoring saw with independent movements of up and down, also main saw automatically self-adjusted minimizing the lifting height for efficiency besides making best finish.
• Quick exchange of main saw blade, ideal design for operator.
• Pressure beam automatically self-adjusted according to the total height of panels, to shorten the travel range, hence higher efficiency.
• Hydraulic rear feeding lift table with max 5t loading capacity, combined with powered and non-powered conveyors making it convenient to feed panels from left, or right side (feeding from left, right, and back side to be specified and optional).
• With steel rope lift system without digging pit.
