Small workbench height from the ground, reduce the labor intensity of operators;
Separate front and rear worktable combination, bending resistance, compression resistance, processing accuracy can be guaranteed;
17mm chrome-plated steel mesa, not easy to wear, surface finish to μm level, indirectly increase the compressive deformation capacity of the frame;
The main body of the saw seat is 22mm thick high strength steel plate to reduce the vibration and noise of the saw seat when walking;
The upper and lower left and right adjustment of the auxiliary saw is electrically adjusted, and the side system is integrated on the saw base;
Accurate suction to each clamp opening, dust leakage can be effectively controlled.

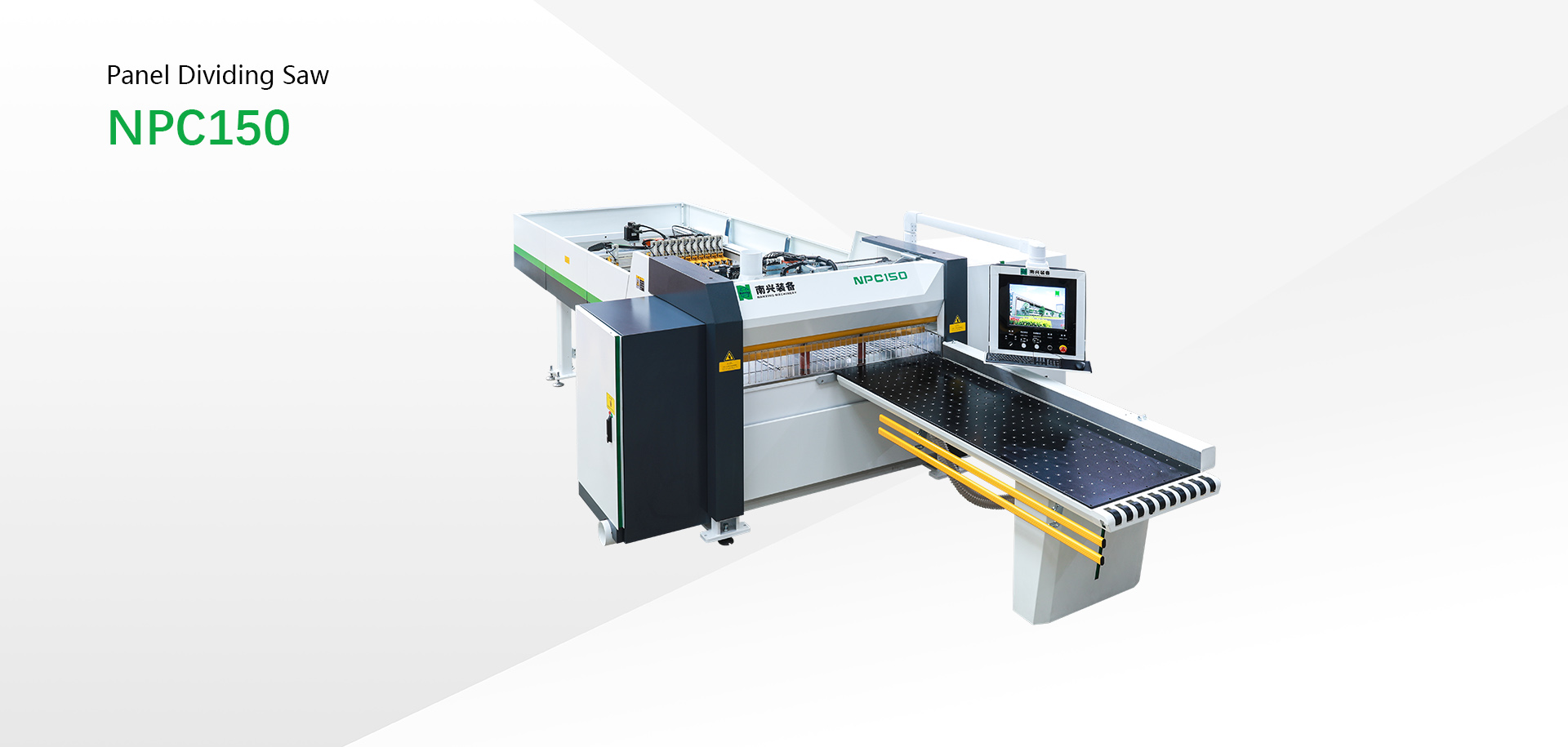

Model
NPC150
Cutting length
3250mm
Cutting thickness
90mm
Main saw rotating speed
3910rpm
Scoring saw rotating speed
4300rpm
Saw carriage forward speed
100 m/min
Saw carriage backward speed
120 m/min
Main saw motor
15kw
Auto feeding speed
85 m/min
Rear feeding speed
60 m/min
Dust extraction
φ150mm×2
Total power
23.5kw
Overall size
6864×3550×1810mm
Net weight
5300kg
