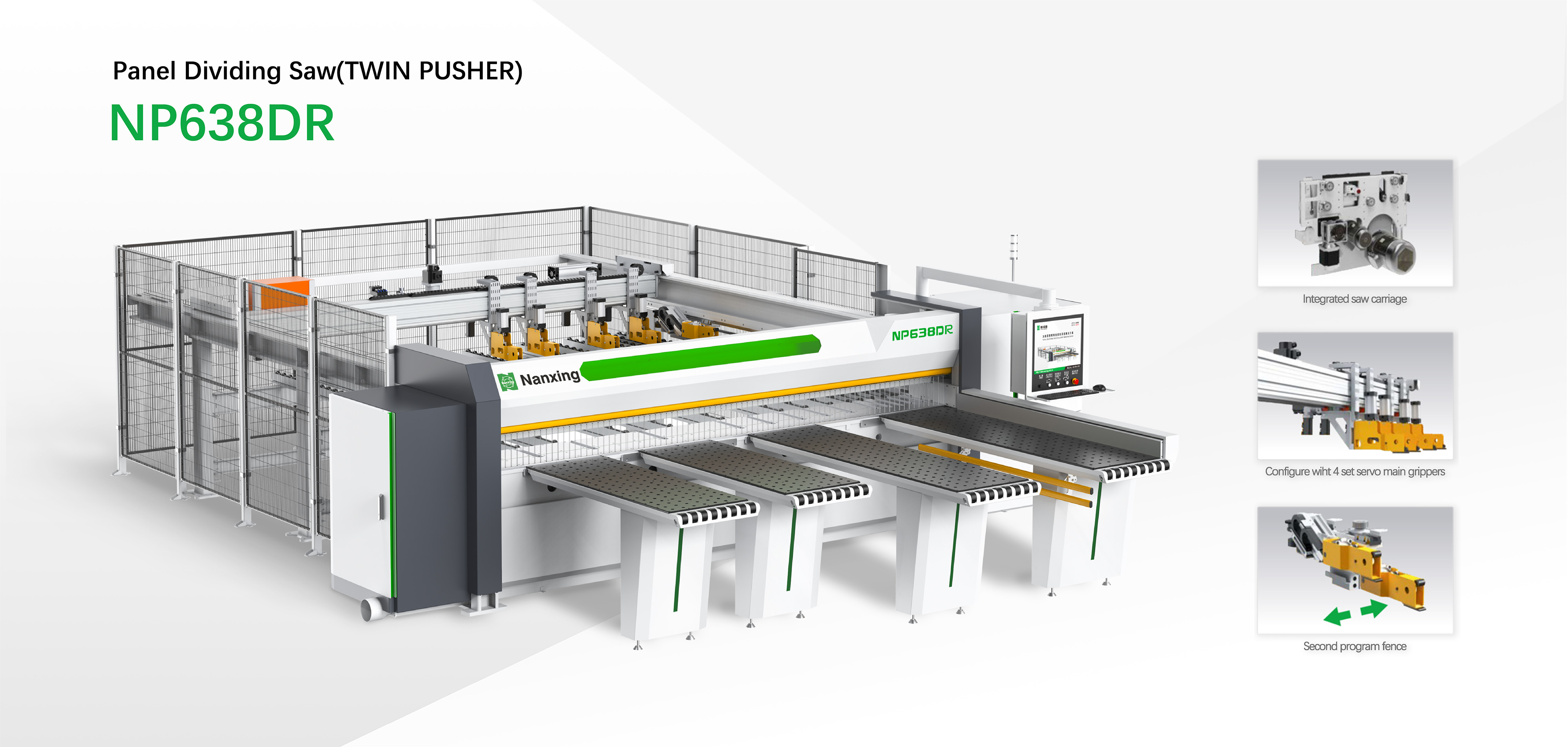

Panel Dividing Saw (Twin pusher) NP638DR

Highlights

• The main and auxiliary clips are driven independently, simultaneous sawing of plates of different sizes increases sawing efficiency by 40%.
• The heavy frame of bridge structure design，after robot welding，natural aging，annealing,five axis-machining processing,to ensure accuracy and stability.
• Accurately adjust the height of the pressure beam according to the thickness of the panel to improve sawing efficiency.
• Pressure beam automatically self-adjusted according to the total height of panels, to shorten the travel range, hence higher efficiency.
• The main saw and second saw use independent motors. Saw blade quick change structure.
• 4 sets of servo control main clamps，2 sets of movable auxiliary clamps. Automatically adjust the position of the clamper according to the processing,make ensure the panel is clamped firmly.
• 4 sets of steel ball air flotation table, easy loading and unloading without scratching the board.
• Quick start device, make convenient and fast to start cutting panel.
• Integrating task management,program import,sawing editing,simulation processing and other functions into one,equipped with professional-level optimization software,effectively improving the utilization rate of panel.
