The Problem We Set Out to Solve
Panel cutting is one of the most dust-intensive operations in any furniture workshop. During high-speed sawing, wood chips and fine particles scatter in every direction — onto the work surface, into the machine internals, and into the air operators breathe.
This dust creates three persistent headaches for manufacturers:
• Workshop contamination: Fine dust settles on finished panels, requiring extra cleaning and risking surface defects.
• Machine wear: Dust ingress accelerates wear on precision components, increasing maintenance frequency and cost.
• Operator health: Prolonged exposure to airborne wood dust is a documented occupational hazard.
Traditional open or semi-open hood designs capture only a fraction of the debris. The rest escapes into the workshop environment. We knew we could do better.
The Solution: A Fully Enclosed, Intelligently Controlled Dust Hood

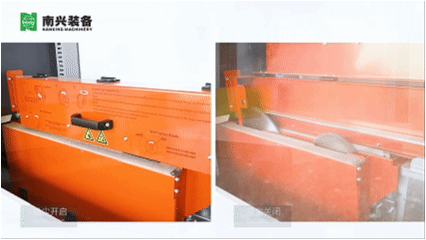

Our engineering team developed a fully enclosed dust collection hood that integrates seamlessly with the cutting head assembly. Unlike conventional designs that leave gaps around the saw blade, this hood forms a tight containment zone around the cutting action.
How it works:
• The enclosure wraps closely around the saw blade and scoring unit, creating a sealed chamber during the cut.
• A high-capacity vacuum port positioned at the optimal extraction point pulls chips and dust directly from the source — before they have a chance to escape.
• The hood geometry is engineered to maintain airflow velocity across the full range of blade heights and cutting depths, ensuring consistent extraction performance whether youre cutting 9 mm laminates or 60 mm solid wood packs.
Smart Access Doors: Magnetic Top, Pneumatic Bottom

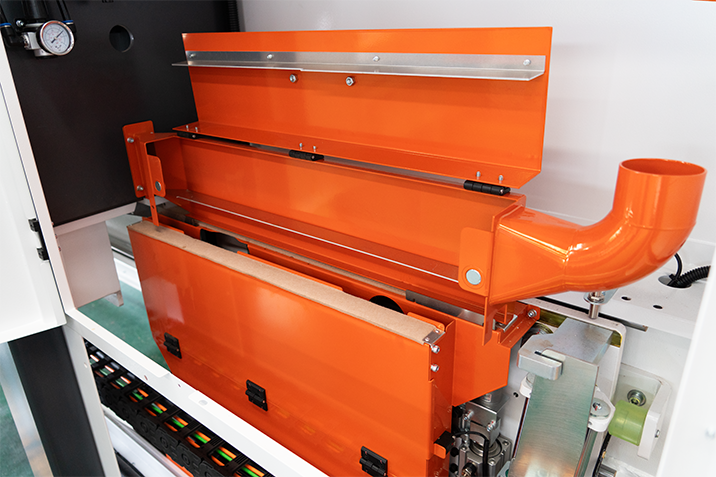

The hood features a dual-door access system designed for both safety and convenience:
• Top door — magnetic latch: Opens instantly by hand for quick blade inspection and minor adjustments. No tools required.

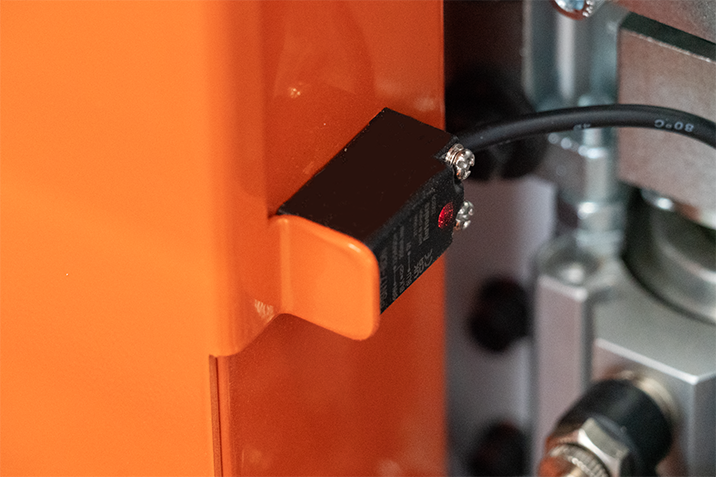

• Bottom door — solenoid-controlled: Operated by the machines computer system, this door opens automatically when the machine is in a safe state and closes securely during cutting. This prevents accidental exposure to the blade while maintaining full accessibility for maintenance.
This intelligent door control ensures that operators can access the cutting area quickly when needed, while the machine itself enforces safety by keeping the enclosure sealed during operation.
Protecting the Fence: Targeted Dust Capture Where It Matters Most
One often-overlooked dust hotspot is the panel fence — the reference surface against which operators align every board. During cutting, this area accumulates an extraordinary amount of dust for a simple reason: every panel slides along the fence before and after the cut.
When dust builds up on the fence, it does more than create a mess. The rotating saw blade generates a vortex that swirls loose particles back toward the cutting edge. If dust is not extracted thoroughly, this recirculating debris acts as an abrasive, accelerating wear on the carbide tips and reducing blade life.
The enclosed hoods sealed design and powerful extraction directly address this problem. By capturing dust at the source — including the high-velocity zone around the fence — it prevents the buildup that feeds blade-damaging vortices and keeps the cutting edge sharper for longer.
Blade Size Reference at a Glance

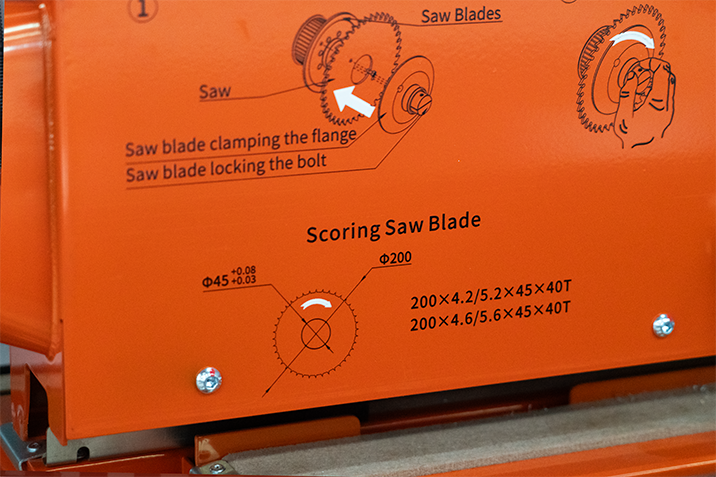

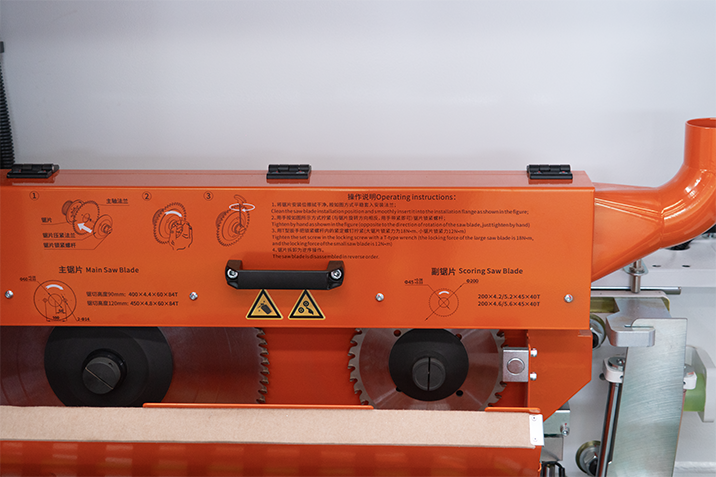

A practical detail that operators will appreciate: the dust hood exterior carries clear markings for both main and scoring blade sizes. When its time to change or order blades, the required specifications are visible at a glance — no need to open the hood, consult manuals, or guess. Its a small touch that saves time and eliminates ordering errors.
Tool-Free Blade Change — One Hex Key, Done

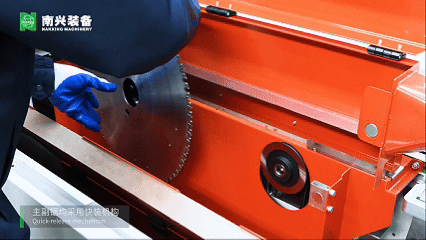

Blade changes are a routine part of panel saw operation, and weve made them as fast as possible. The hoods quick-access design means a single hex key is all an operator needs to remove and replace both main and scoring blades. No specialised tools, no disassembly of the hood structure, no extended downtime.
For busy workshops running mixed materials and thicknesses, this translates to more productive cutting hours and less time spent on changeovers.
What This Means for Your Workshop
|
Benefit
|
Impact
|
|
Controlled dust containment
|
Wood chips are captured at the point of generation, not scattered across the machine bed or workshop floor.
|
|
Reduced cleanup time
|
Less airborne debris means less time sweeping, wiping, and cleaning between jobs.
|
|
Improved panel quality
|
Eliminates dust settling on freshly cut edges and panel surfaces, reducing the risk of contamination during downstream processing.
|
|
Extended blade life
|
Prevents dust vortices from recirculating abrasive particles back onto the cutting edge, reducing wear on carbide tips.
|
|
Extended machine life
|
Less dust infiltration into guideways, bearings, and electronics translates to lower maintenance and longer service intervals.
|
|
Better working environment
|
Lower airborne particle concentration creates a healthier, more comfortable workspace for operators.
|
Not Just One Model — The Entire Panel Saw Series
This enclosed dust hood is not a premium add-on for a single flagship model. It is a standard feature across Nanxings complete panel saw lineup, including:
• NPC330LE Rear-Loading High-Speed Panel Saw
• And all models within the computerised panel saw series
Whether youre running a compact single-shift operation or a high-volume multi-line factory, you get the same level of dust control, blade protection, and operator care.
Designed with the Operator in Mind
The hood is designed for real-world workshop conditions:
• Quick-access panels allow fast blade changes and routine maintenance without removing the entire assembly.
• Transparent inspection window lets operators visually confirm blade condition and cutting alignment at a glance.
• Durable construction uses wear-resistant materials in high-contact areas to withstand years of abrasive chip flow.
A Small Detail, A Big Difference
At Nanxing, product development is not just about adding features — its about removing pain points. The enclosed dust hood is a seemingly small change that delivers outsized benefits: cleaner panels, cleaner machines, cleaner air, and a cleaner bottom line.
It is one more example of how we engineer not just for performance, but for the people who make performance possible.
