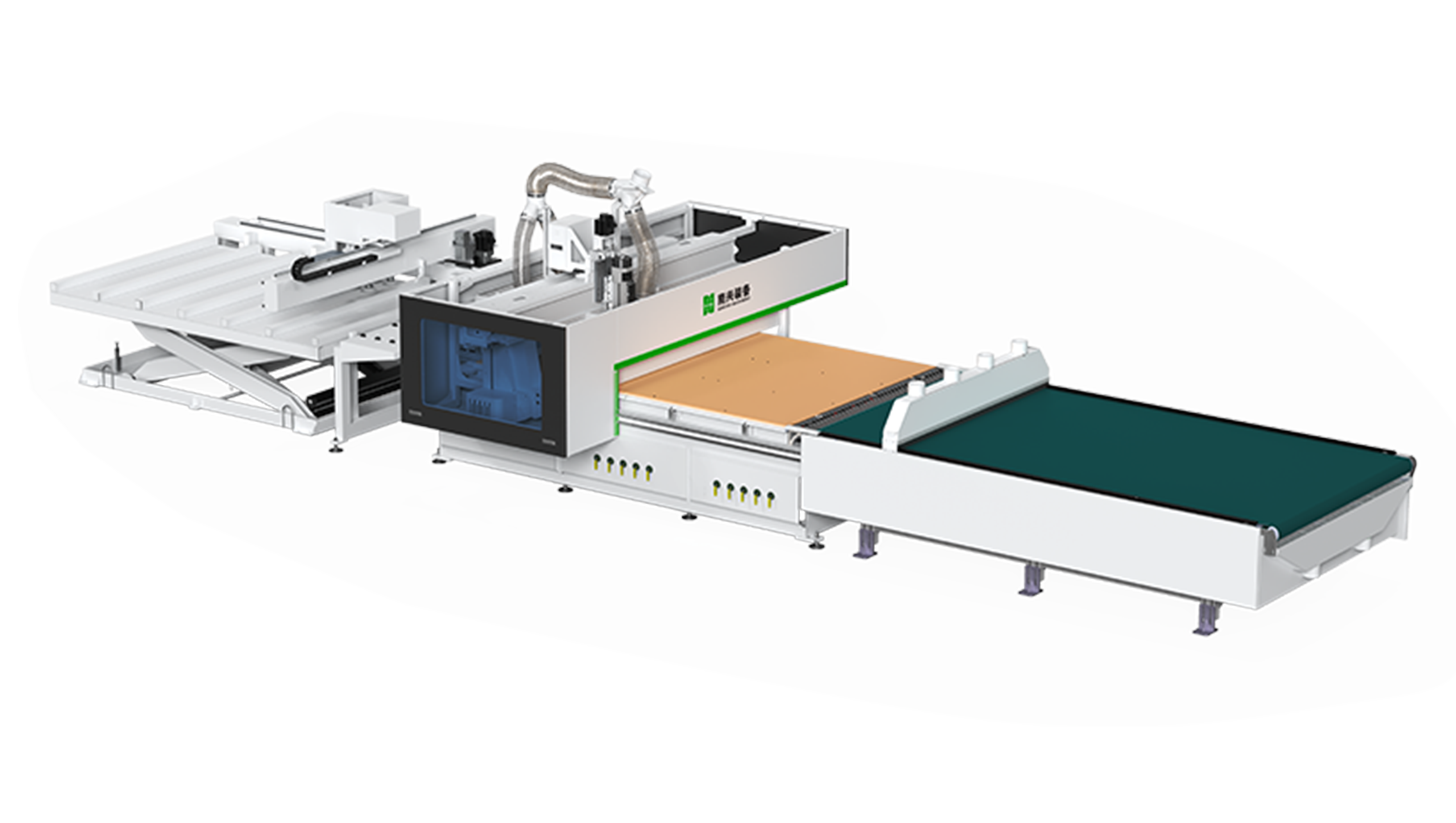

Nanxing NCG3021LE Large-Format CNC Nesting Machine Technical Profile and Market Application

Executive Summary

The NCG3021LE represents a purpose-built solution for custom furniture manufacturers navigating the dual pressures of rising material costs and accelerating delivery timelines. With a 3100×2100mm processing envelope, automated tool-changing capability, and intelligent dust-management architecture, this machine addresses core production bottlenecks that have historically constrained mid-to-large scale panel furniture operations.

This technical overview examines the NCG3021LEs engineering specifications, identifies the operational pain points it resolves, and maps its applicability across key regional markets where demand for flexible, high-throughput nesting equipment is expanding.

Core Technical Specifications

Engineering Design Philosophy

Large-Format Nesting Architecture

The 3100×2100mm bed accommodates full-sheet processing of commonly specified panel dimensions without secondary repositioning. This directly eliminates:

• Material waste from re-clamping offsets

• Cycle time penalties from split-cut operations

• Dimensional drift introduced by multi-stage handling

For operations processing mixed batch sizes—particularly relevant in custom kitchen and wardrobe manufacturing—the ability to nest across full sheets without segmentation improves material yield by 3–8% compared to smaller-format alternatives.

Dust-Free Cutting Integration

Conventional nesting generates significant airborne particulate at the cut interface, requiring post-process cleaning and creating respiratory hazards in production environments. The NCG3021LE implements spindle-integrated directional dust extraction, maintaining cut-line visibility and eliminating secondary cleaning operations.

Operational impact:

• Reduced labor allocation per panel

• Improved cut-edge quality for subsequent edge-banding adhesion

• Compliance with increasingly stringent workplace air quality regulations (notably in EU and North American markets)

Precision Frame ConstructionThe machine frame undergoes:

1. Robotic welding for joint consistency

2. Natural aging for stress stabilization

3. Annealing for metallurgical uniformity

4. Five-axis finish machining in a single setup

This sequence yields geometric stability that sustains positioning accuracy across temperature variations and continuous-duty cycles—critical for operations running multi-shift schedules.

Customer Pain Points Addressed

Labor Dependency and Skill Scarcity

Pain Point: Custom furniture manufacturing traditionally relies on experienced operators for tool setup, material handling, and quality verification. Skilled labor availability is contracting across mature manufacturing economies.

NCG3021LE Response:

• Automatic tool measurement and offset compensation

• Barcode-driven job loading with nested program selection

• Automated labeling correlated to cut parts

• Reduced touchpoints from sheet-load to finished part removal

Throughput Bottlenecks in Mixed-Production Environments

Pain Point: Batch-size-of-one production—standard in custom furniture—creates setup overhead that erodes machine utilization. Conventional equipment optimized for long runs underperforms in high-mix, low-volume contexts.

NCG3021LE Response:

• 12-tool magazine enables complete job completion without manual intervention

• 100 m/min rapids minimize non-cutting time

• Open software interface accepts optimized nest data from third-party CAM systems

• Multi-machine workstation configuration (1T2-NCG3021LE) for parallel processing

Material Utilization Pressure

Pain Point: Panel material represents 40–60% of finished product cost in furniture manufacturing. Suboptimal nesting and handling damage directly compress margins.

NCG3021LE Response:

• Full-sheet processing eliminates edge-trimming waste from partial cuts

• 10-zone vacuum system secures irregular offcuts for secondary nesting

• Cloud-based optimization integration for dynamic nest generation

• Stable vacuum hold-down preventing movement-induced scrap

Quality Consistency Across Shifts

Pain Point: Manual processes introduce variance between operators and across shifts, creating downstream assembly issues and customer rejection.

NCG3021LE Response:

• Automated tool setting eliminates manual measurement variance

• Closed-loop servo positioning with grinding-grade rack drives

Application Scenarios

Custom Kitchen Cabinet Manufacturing

Requirements: High mix of door sizes, drawer components, and carcass panels; frequent design changes; tight dimensional tolerances for hardware installation.

NCG3021LE Fit:

• Full-sheet nesting of mixed cabinet components

• Automatic labeling for part-to-hardware matching

• Handle and straightener machining via custom macro cycles

• Direct integration with kitchen design software output

Flat-Pack Furniture Production

Requirements: High volume, standardized components, cost minimization, packaging optimization.

NCG3021LE Fit:

• Multi-shift continuous operation capability

• Cloud optimization for maximum material yield

• Consistent part quality reducing assembly friction

• Scalable to workstation configuration for volume scaling

Wardrobe and Closet System Manufacturing

Requirements: Long panel processing (often exceeding 2400mm), vertical panel integration, hardware precision.

NCG3021LE Fit:

• 3100mm X-axis accommodates standard wardrobe heights without rotation

• 10-zone vacuum secures long narrow panels against lifting

• Custom model library for specialized fittings

Commercial Furniture and Interior Fit-Out

Requirements: Mixed material types (particleboard, MDF, plywood), non-standard dimensions, project-based production.

NCG3021LE Fit:

• Open software interface accepts diverse CAD/CAM outputs

• Large format reduces jointing requirements for oversized components

• Dust-free cutting suitable for coated and laminated panels
